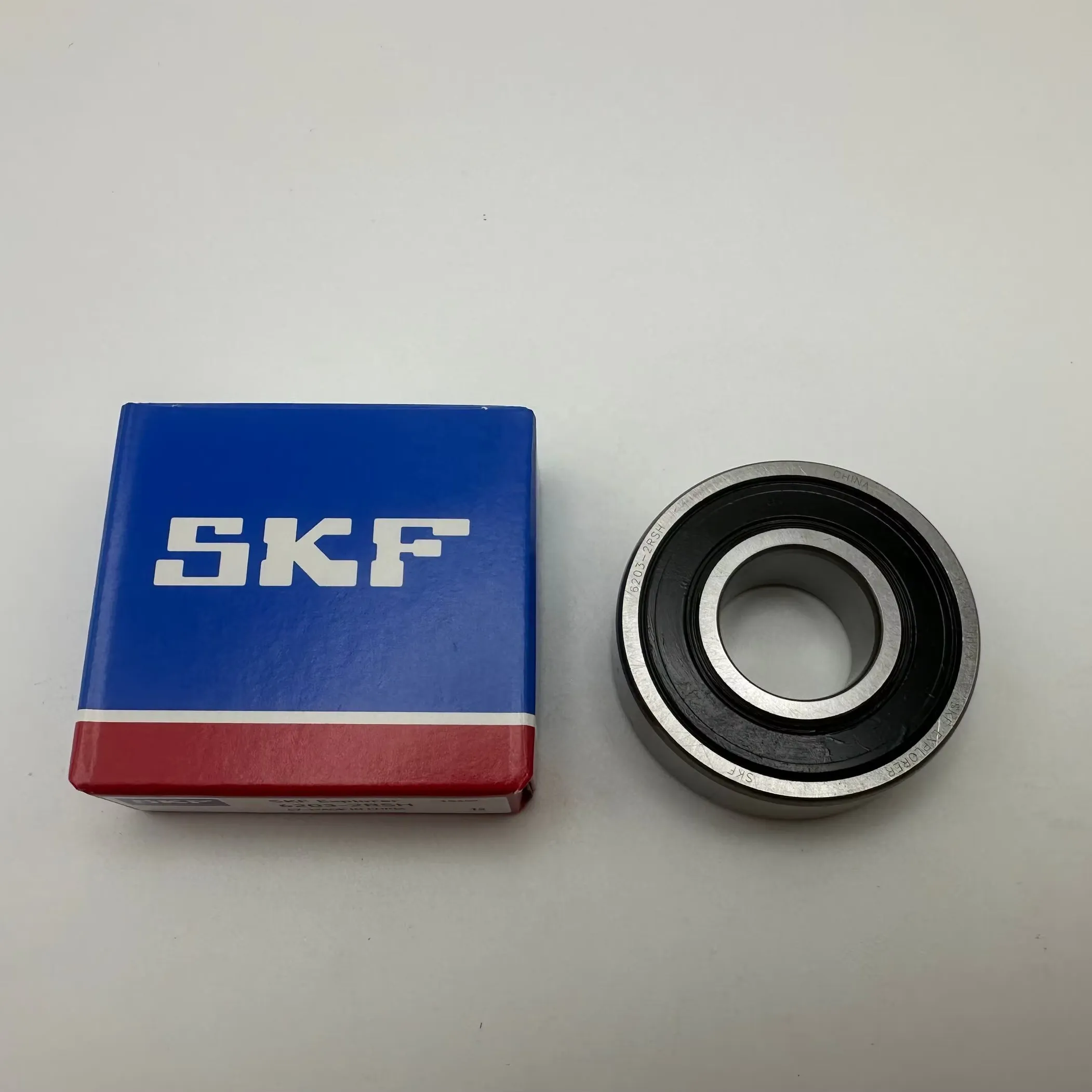

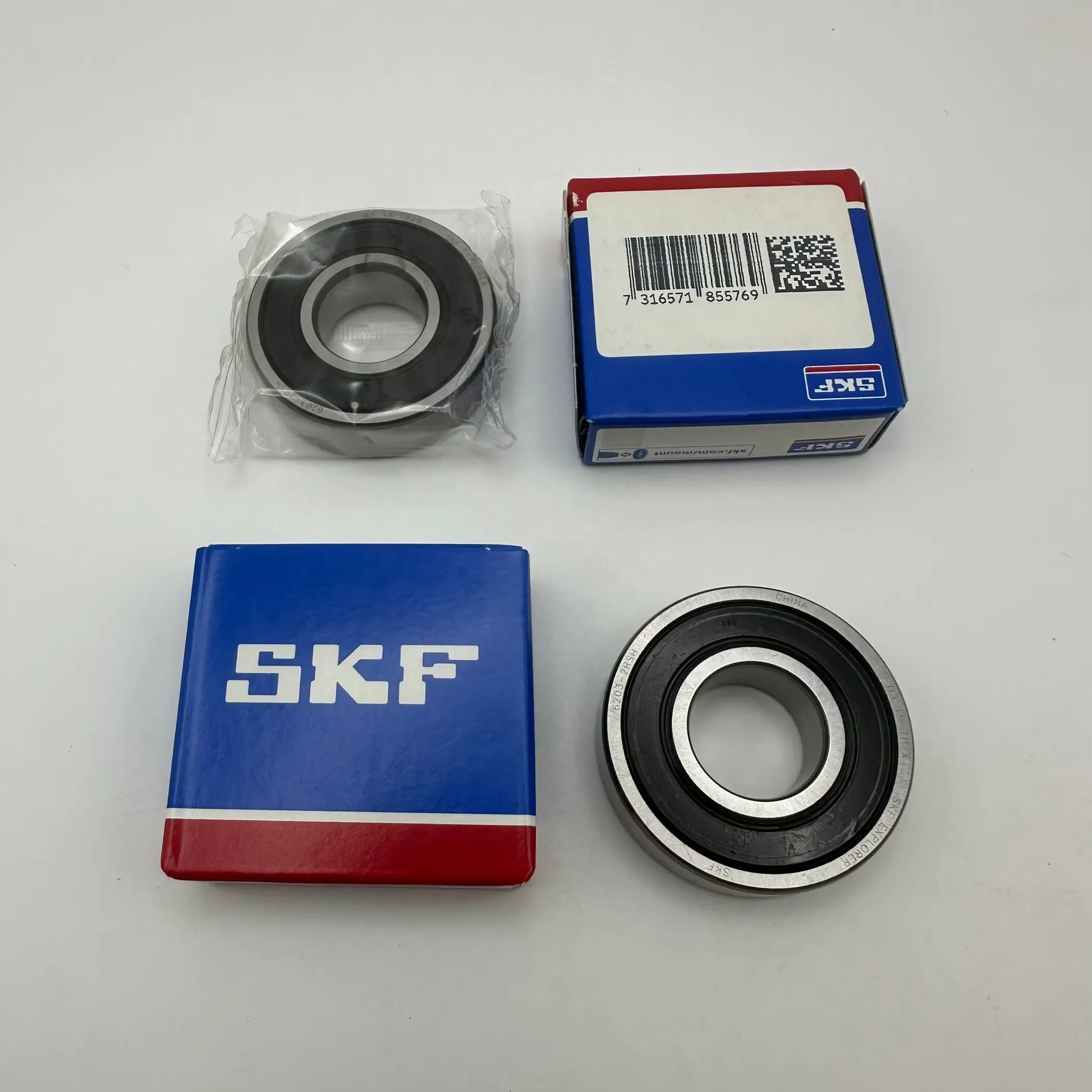

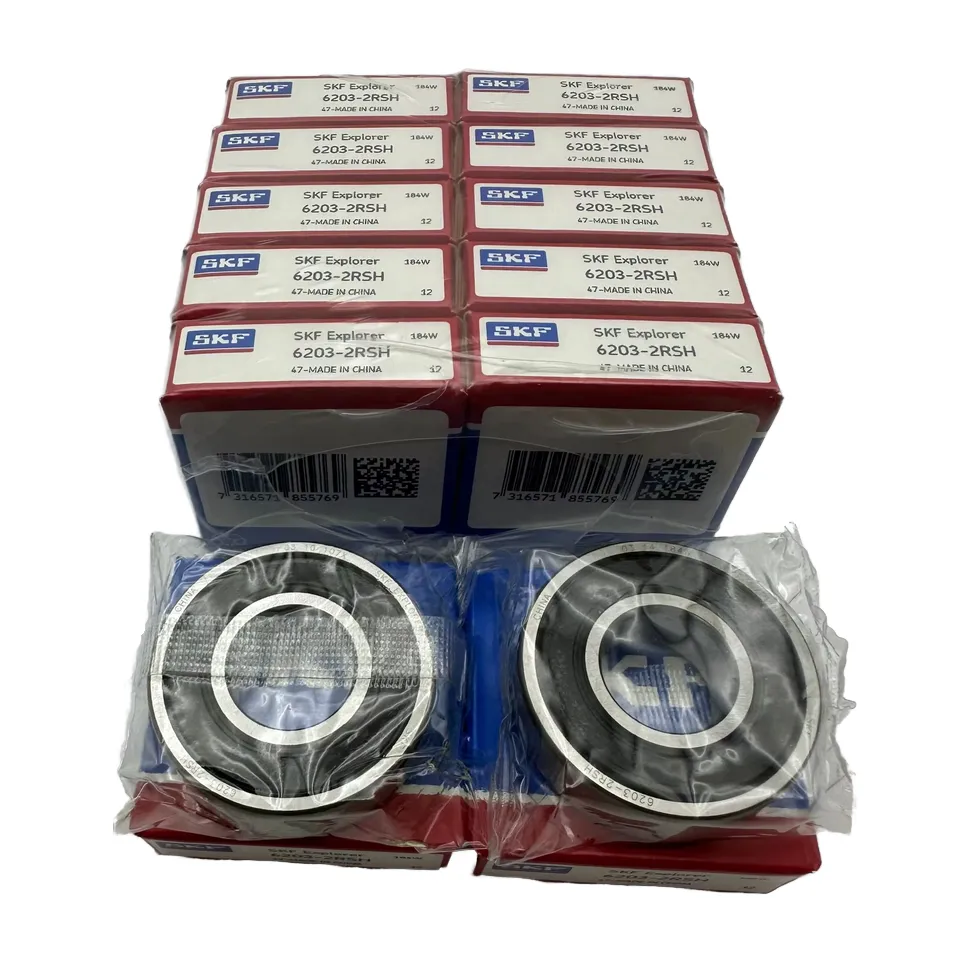

SKF bearings 6203 2RSH
The SKF 6203 2RSH is a versatile deep groove ball bearing, widely trusted in industrial and precision equipment fields. As a classic model from SKF, a leading global bearing brand, it balances reliability and cost-effectiveness for medium-load scenarios.
The SKF 6203 2RSH is a versatile deep groove ball bearing, widely trusted in industrial and precision equipment fields. As a classic model from SKF, a leading global bearing brand, it balances reliability and cost-effectiveness for medium-load scenarios.

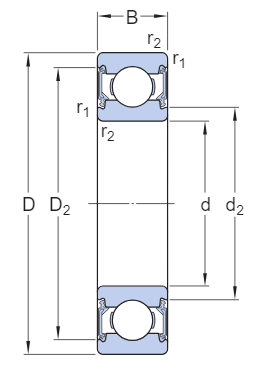

Its standard dimensions are 17mm (inner diameter), 40mm (outer diameter) and 12mm (width). The suffix "2RSH" denotes two high-quality rubber seals, which effectively block dust and moisture while retaining lubricant, extending service life.
Crafted from high-grade bearing steel with SKF’s precision manufacturing, it operates stably at -30℃ to 120℃. Common applications include electric motors, fans, pumps, small gearboxes and household appliances.
In brief, it’s a practical, high-performance solution for applications requiring basic sealing and stable load-bearing capabilities.
| Item | 6203 2RSH |
| Type | deep groove ball bearing |
| Brand | SKF |
| Country of origin | China |
| Bore diameter d | 17 mm |
| Outside diameter D | 40mm |
| Width B | 12 mm |
| Basic dynamic load rating, radial | 9.95 kN |
| Basic static load rating, radial | 4.75 kN |
| Fatigue load limit, radial | 0.2 kN |
| Limiting speed | 12000 r/min |
| Weight | 0.0651 kg |
| Application | electric motors, pumps, fans, conveyors, agricultrual machinery, home appliances etc. |
