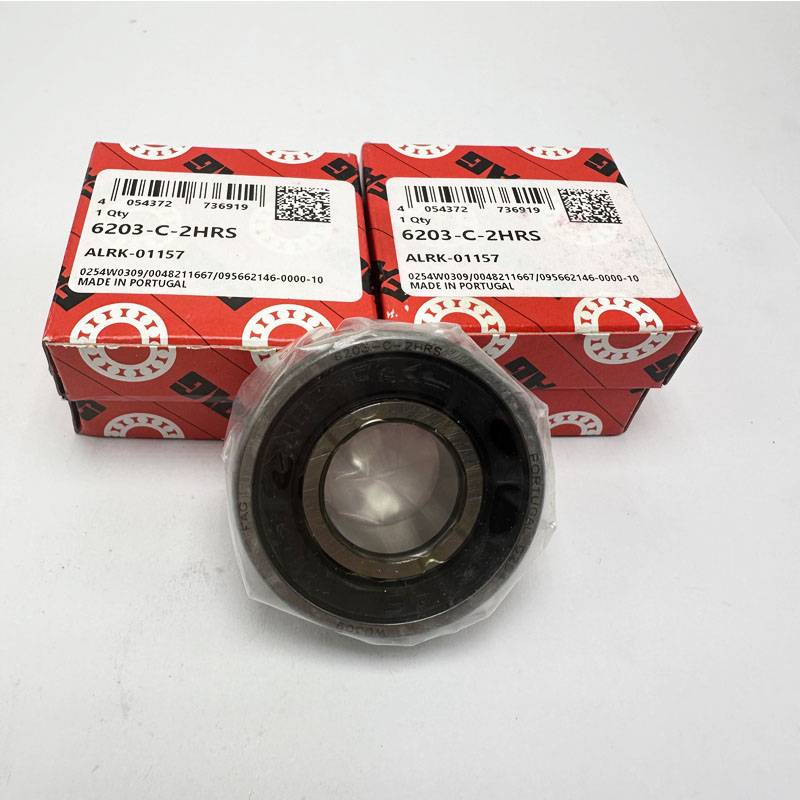

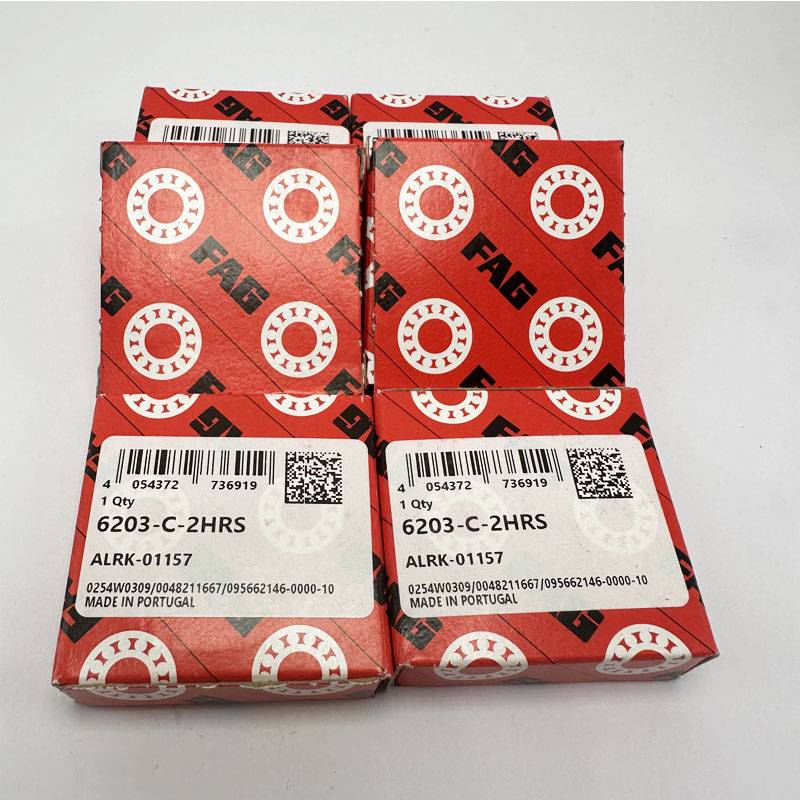

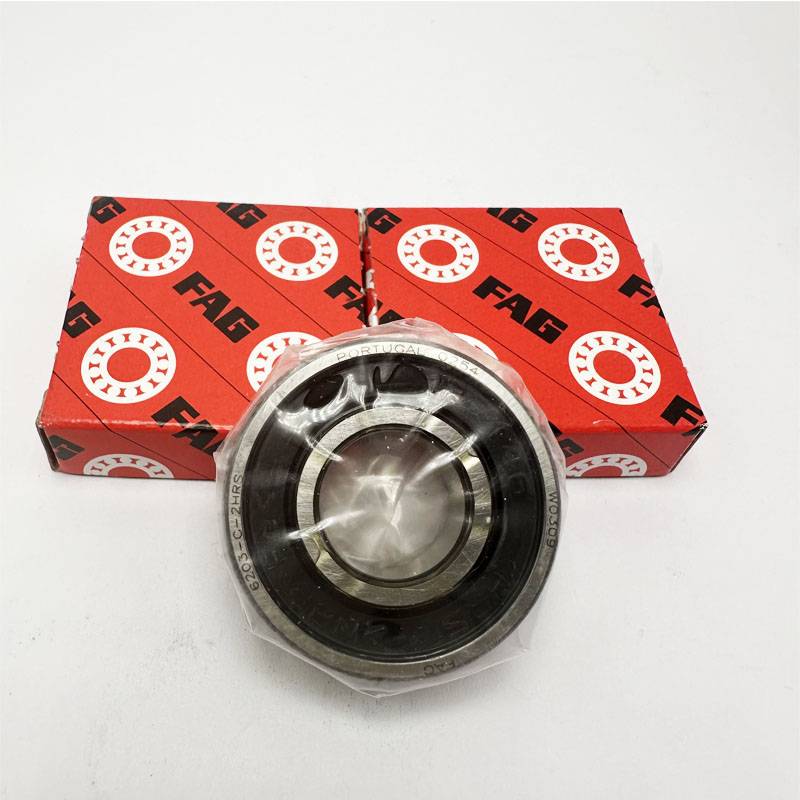

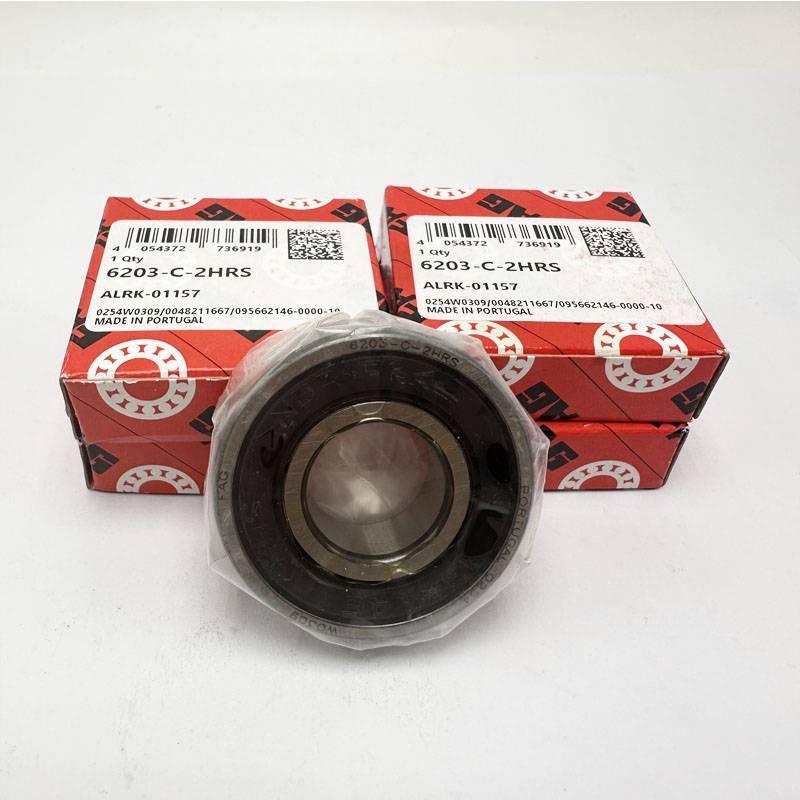

FAG bearings 6203-C-2HRS
The FAG 6203-C-2HRS is a high-performance deep groove ball bearing, ideal for precision machinery and medium-load applications. As an upgraded model of FAG’s 6203 series, it excels in load capacity and sealing reliability.
The FAG 6203-C-2HRS is a high-performance deep groove ball bearing, ideal for precision machinery and medium-load applications. As an upgraded model of FAG’s 6203 series, it excels in load capacity and sealing reliability.

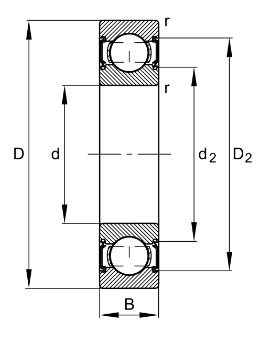

Its key dimensions are 17mm (inner diameter), 40mm (outer diameter) and 12mm (width). For the suffixes: "C" means a 15° contact angle (enhancing combined load resistance), and "2HRS" refers to two high-performance rubber seals that prevent impurities and retain lubricant.
Made of premium bearing steel with FAG’s precision machining, it works stably at -30℃ to 120℃. Typical uses include precision motors, small gearboxes, medical and textile machinery.
In short, it’s a reliable precision solution for applications where standard bearings lack sufficient load and sealing performance.
| Item | 6203-C-2HRS |
| Type | deep groove ball bearing |
| Brand | FAG |
| Country of origin | Portugal |
| Bore diameter d | 17 mm |
| Outside diameter D | 40mm |
| Width B | 12 mm |
| Basic dynamic load rating, radial | 11,000 N |
| Basic static load rating, radial | 4,750 N |
| Fatigue load limit, radial | 330 N |
| Limiting speed | 16,900 1/min |
| Weight | 0.064 kg |
| Application | electric motors, pumps, fans, conveyors, agricultrual machinery, home appliances etc. |
