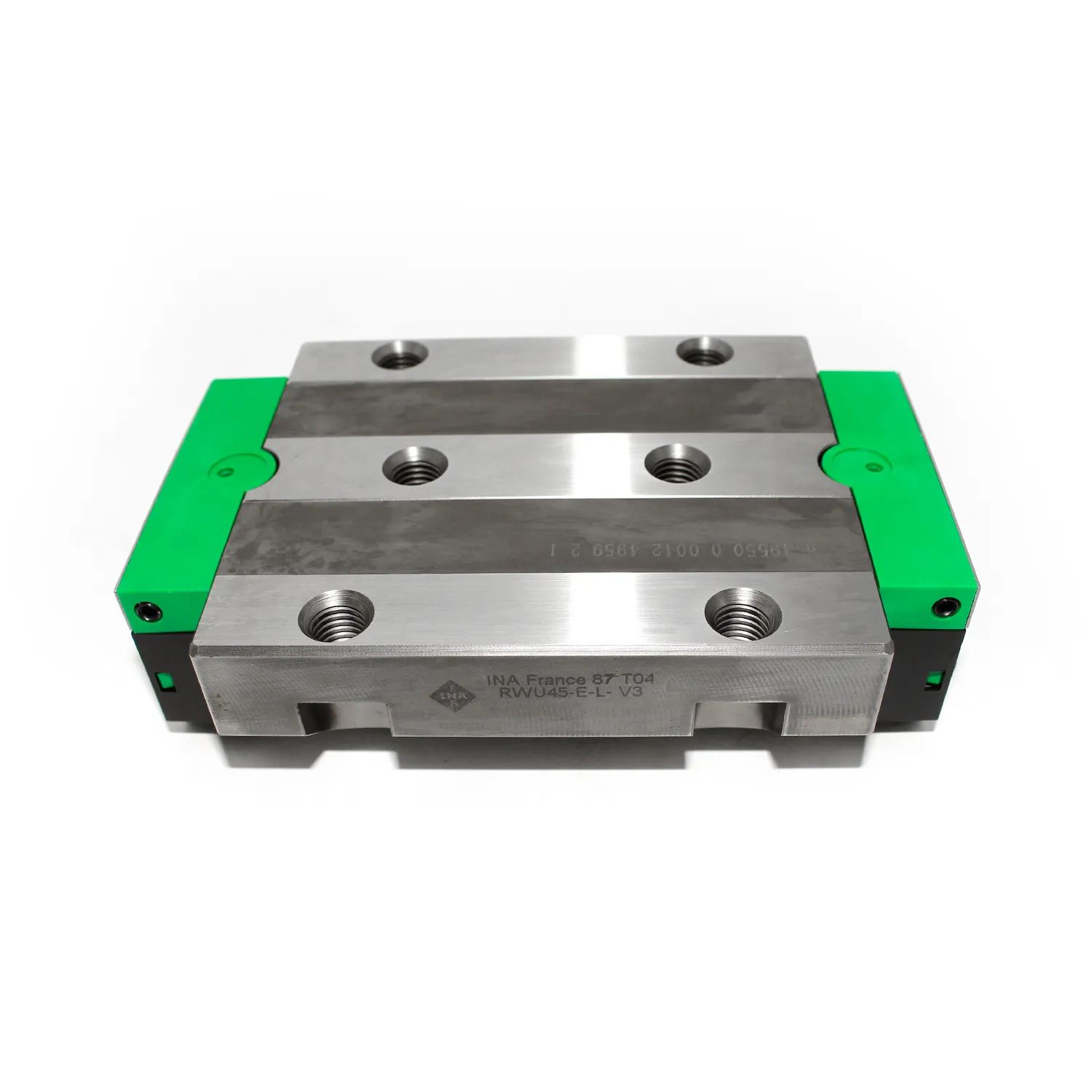

INA Linear Roller Carriage RWU45-E-L-V3
The RWU45-E-L-V3 is a long-type, four-row linear recirculating roller bearing carriage from INA (Schaeffler Group), part of the RWU45 series. It features a full-complement roller design, standard E-type roller system, and medium preload (V3). Engineered for high-load, high-rigidity applications requiring extended moment support and precise linear motion.
The RWU45-E-L-V3 is a long-type, four-row linear recirculating roller bearing carriage from INA (Schaeffler Group), part of the RWU45 series. It features a full-complement roller design, standard E-type roller system, and medium preload (V3). Engineered for high-load, high-rigidity applications requiring extended moment support and precise linear motion.
Core Specifications (Schaeffler Medias Official Data)
| Parameter | Value | Unit |
|---|---|---|
| Part Number | RWU45-E-L-V3 | — |
| Series | RWU45 | — |
| Rail Width (b) | 45 | mm |
| Carriage Height (H) | 60 | mm |
| Carriage Width (B) | 120 | mm |
| Carriage Length (L) | 178.3 | mm |
| Weight | 4.05 | kg |
| Dynamic Load Rating (C) | 114,000 | N |
| Static Load Rating (C₀) | 260,000 | N |
| Static Moment Rating (M₀ₓ) | 920 | N·m |
| Static Moment Rating (M₀ᵧ) | 3,850 | N·m |
| Static Moment Rating (M₀z) | 3,850 | N·m |
| Preload Class | V3 (Medium Preload) | — |
| Roller Configuration | Four-row, full-complement recirculating rollers | — |
| Carriage Type | E-L: Standard E-version, long carriage | — |
| Lubrication | Oil or grease lubrication | — |
| Mounting Bolts | M8 (grade 12.9) | — |
| Temperature Range | -10 to +80 | °C |
| Sealing | End seals + longitudinal sealing strips | — |
Key Features & Applications
- High Load & Moment Capacity: Four-row full-complement roller design delivers exceptional static/dynamic load ratings and enhanced moment resistance, ideal for heavy-duty machinery.
- Long Carriage (L): Extended length (178.3 mm) improves stability under overhung loads and increases support span, suitable for long-stroke systems.
- Medium Preload (V3): Eliminates internal clearance, boosts rigidity, and ensures precise positioning accuracy under variable loads.
- Smooth Motion: Precision-ground raceways minimize friction, enabling consistent, low-vibration travel over long distances.
- Versatile Compatibility: Matches all RWU45-series linear guide rails; widely used in CNC machine tools, automation lines, presses, and heavy industrial equipment.
Suffix Explanation
- E: Standard linear recirculating roller bearing system.
- L: Long-type carriage (extended length).
- V3: Medium preload class (standard preload).
