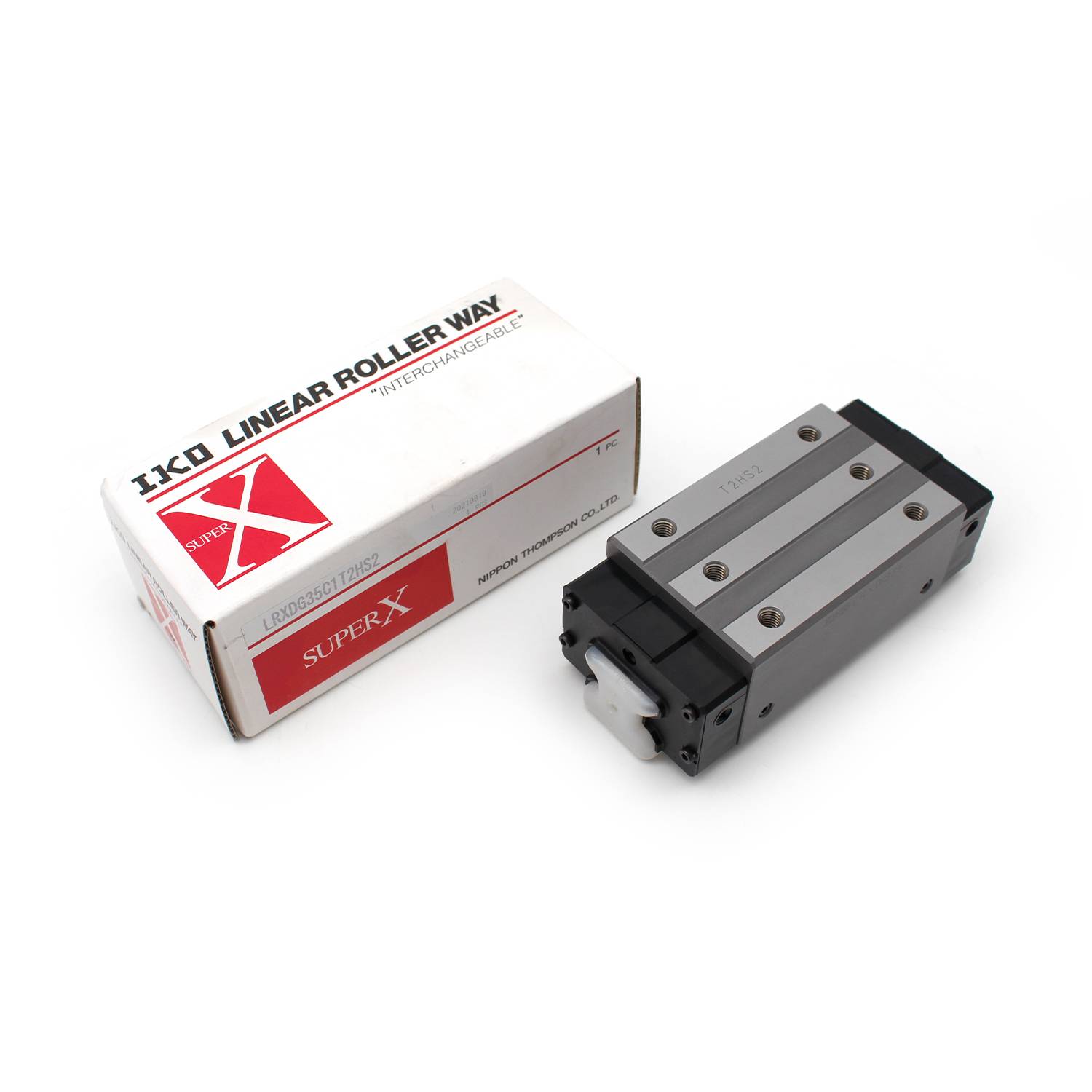

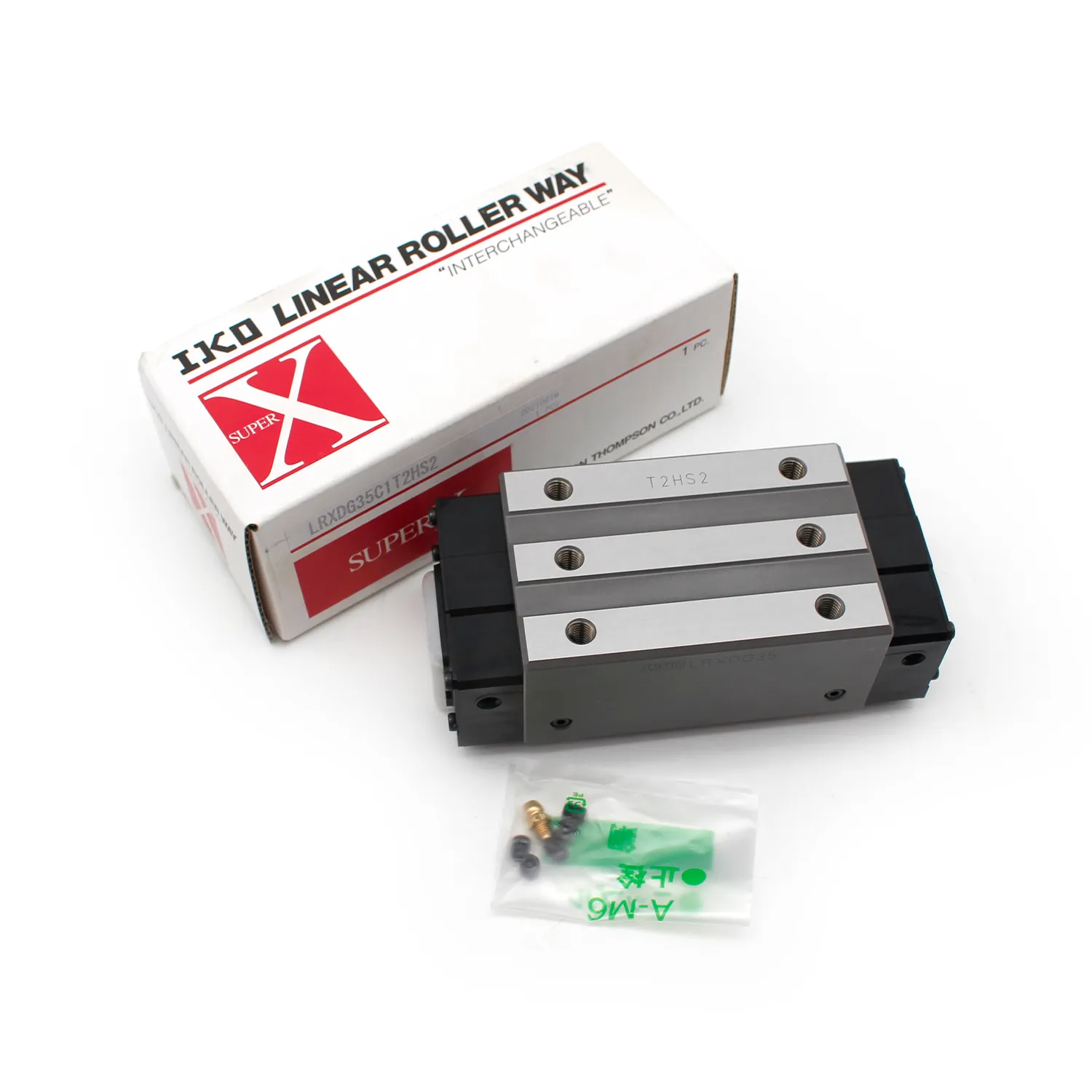

IKO LRXDG35C1T2HS2
High‑rigidity roller type linear guide, 4 rows cylindrical rollers in parallel arrangement
Product Line: Linear Roller Way Super X, LRX Series (C‑Lube Maintenance‑Free)Model: LRXDG35C1T2HS2Type: High‑rigidity roller type linear guide, 4 rows cylindrical rollers in parallel arrangement
1. Design & Features (Official)
- C‑Lube System: Built‑in solid lubricant, maintenance‑free for 20,000 km (no regreasing needed)
- High Rigidity & Load Capacity: Balanced 4‑row roller design, minimal elastic deformation under heavy/fluctuating loads; suitable for vibration/shock environments
- Precision Grade: HS2 (High Accuracy Grade 2)
- Preload Class: C1 (Medium Preload)
- Carriage Type: G = Long Block
- Interchangeability: Interchangeable with standard LRX35 rails
2. Technical Specifications (Official Dimensions & Ratings)
Dimensions (mm)
表格
| Parameter | Value |
|---|---|
| Carriage Mass | 1.95 kg |
| Rail Mass | 6.88 kg/m |
| Mounting Height (H) | 55 mm |
| Carriage Width (W1) | 80 mm |
| Carriage Length (L1) | 124 mm |
| Mounting Hole | M8 × 16 |
Load Ratings (Official, LRX Series)
表格
| Rating | Value |
|---|---|
| Basic Dynamic Load (C) | 52,000 N |
| Basic Static Load (C₀) | 78,000 N |
| Static Moment (T₀) | 1,600 N·m |
3. Part Number Breakdown (Official Nomenclature)
- LRXDG35C1T2HS2
- LRX: Linear Roller Way Super X Series
- D: Flange type
- G: Long carriage
- 35: Size 35
- C1: Medium preload
- T2: Standard accuracy
- HS2: High accuracy grade 2
4. Applications (Official Recommended)
Machine tools, heavy‑duty automation, semiconductor equipment, industrial robots, injection molding machines
