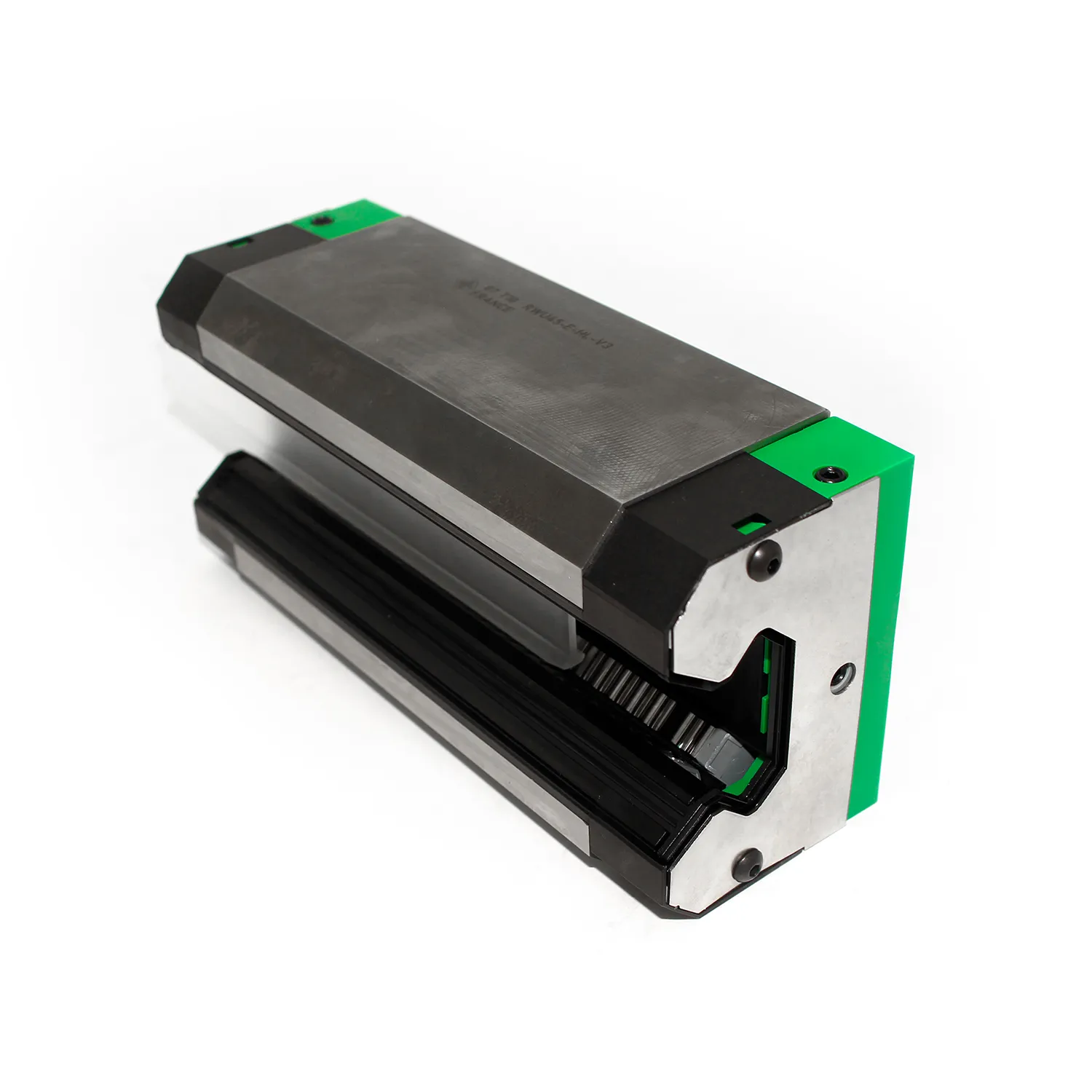

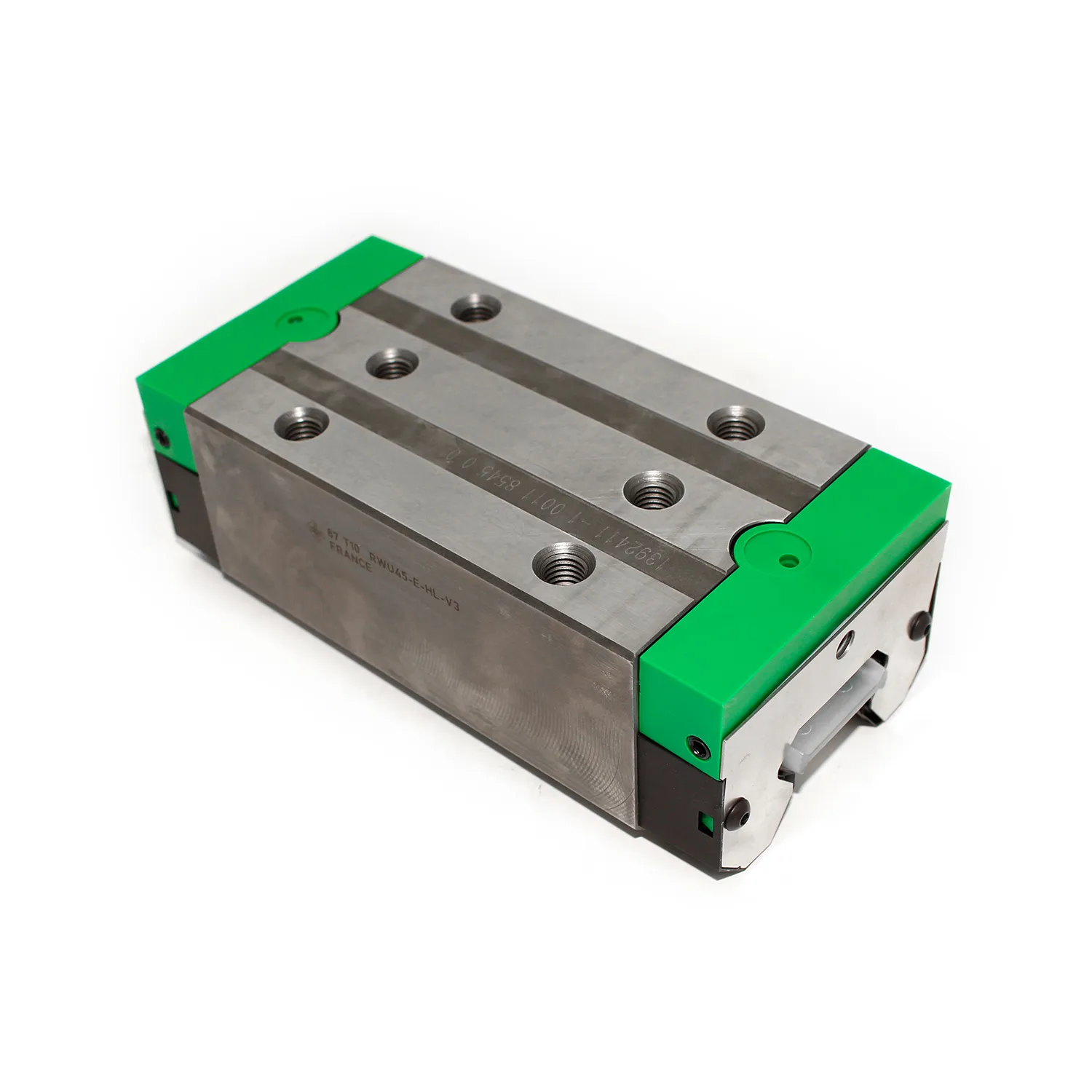

INA Linear Roller Carriage RWU45-E-HL-V3
The RWU45-E-HL-V3 is a high, narrow, long linear recirculating roller bearing carriage from INA (Schaeffler Group), part of the RWU45 series. It features a full-complement roller design, standard E-type roller system, and medium preload (V3), engineered for high-load, high-rigidity linear motion applications demanding exceptional precision and stability.
The RWU45-E-HL-V3 is a high, narrow, long linear recirculating roller bearing carriage from INA (Schaeffler Group), part of the RWU45 series. It features a full-complement roller design, standard E-type roller system, and medium preload (V3), engineered for high-load, high-rigidity linear motion applications demanding exceptional precision and stability.
Core Specifications (Schaeffler Medias Official Data)
| Parameter | Value | Unit |
|---|---|---|
| Part Number | RWU45-E-HL-V3 | — |
| Series | RWU45 | — |
| Rail Width (b) | 45 | mm |
| Carriage Height (H) | 70 | mm |
| Carriage Width (B) | 86 | mm |
| Carriage Length (L) | 178.3 | mm |
| Weight | 3.95 | kg |
| Dynamic Load Rating (C) | 285,000 | N |
| Static Load Rating (C₀) | 670,000 | N |
| Static Moment Rating (M₀ₓ) | 2,503 | N·m |
| Static Moment Rating (M₀ᵧ) | 7,263 | N·m |
| Static Moment Rating (M₀z) | 6,536 | N·m |
| Preload Class | V3 (Medium Preload) | — |
| Bearing Type | Full-complement recirculating roller | — |
| Carriage Type | E-HL: High, narrow, long carriage | — |
| Lubrication | Oil or grease lubrication | — |
| Mounting Bolts | M8 (grade 12.9) | — |
Key Features & Applications
- Extreme Load Capacity: Full-complement four-row roller configuration delivers exceptional dynamic and static load ratings, suitable for heavy-duty machinery.
- High Rigidity & Stability: Medium preload (V3) eliminates clearance, enhancing rigidity, positioning accuracy, and resistance to deflection under complex loads.
- High, Narrow, Long Design (HL): Optimized for applications requiring elevated height, reduced width, and extended support length, improving moment resistance.
- Smooth & Precise Motion: Precision-manufactured roller raceways ensure low friction, consistent travel, and high repeatability.
- Wide Compatibility: Matches RWU45 series linear guide rails, suitable for CNC machine tools, automation lines, precision presses, and heavy industrial equipment.
Suffix Explanation
- E: Standard linear recirculating roller bearing system.
- HL: High, narrow, long carriage design.
- V3: Medium preload class (standard preload).
