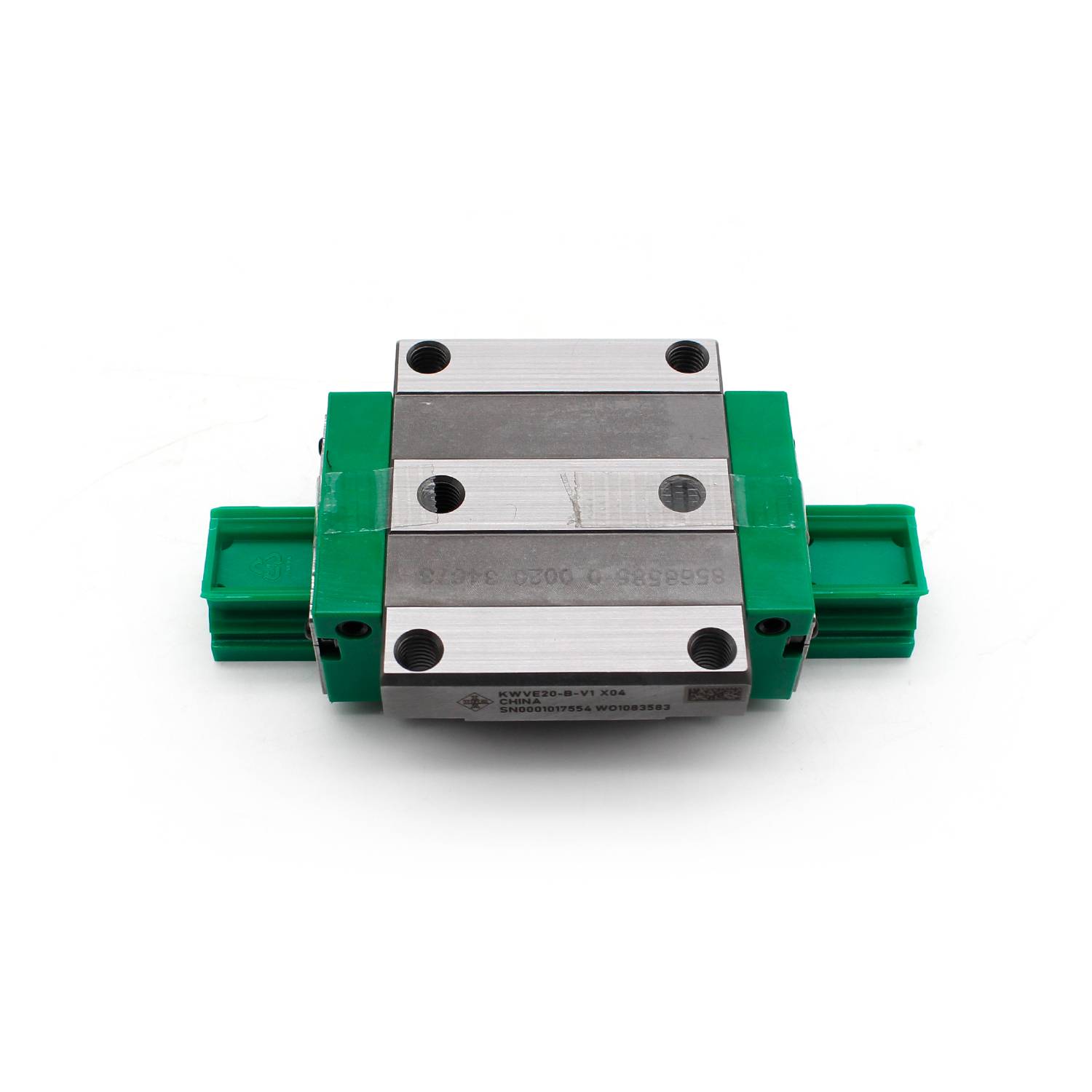

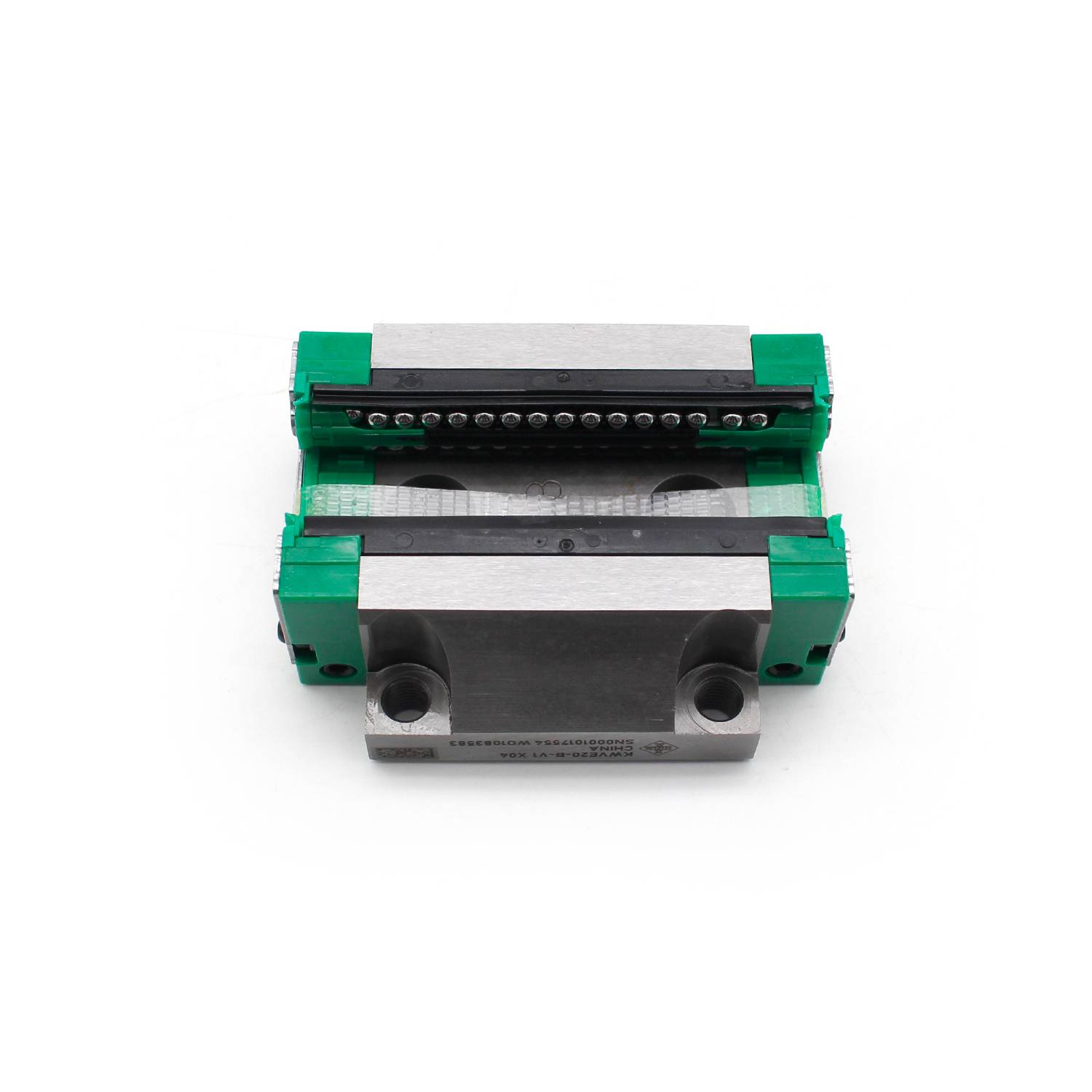

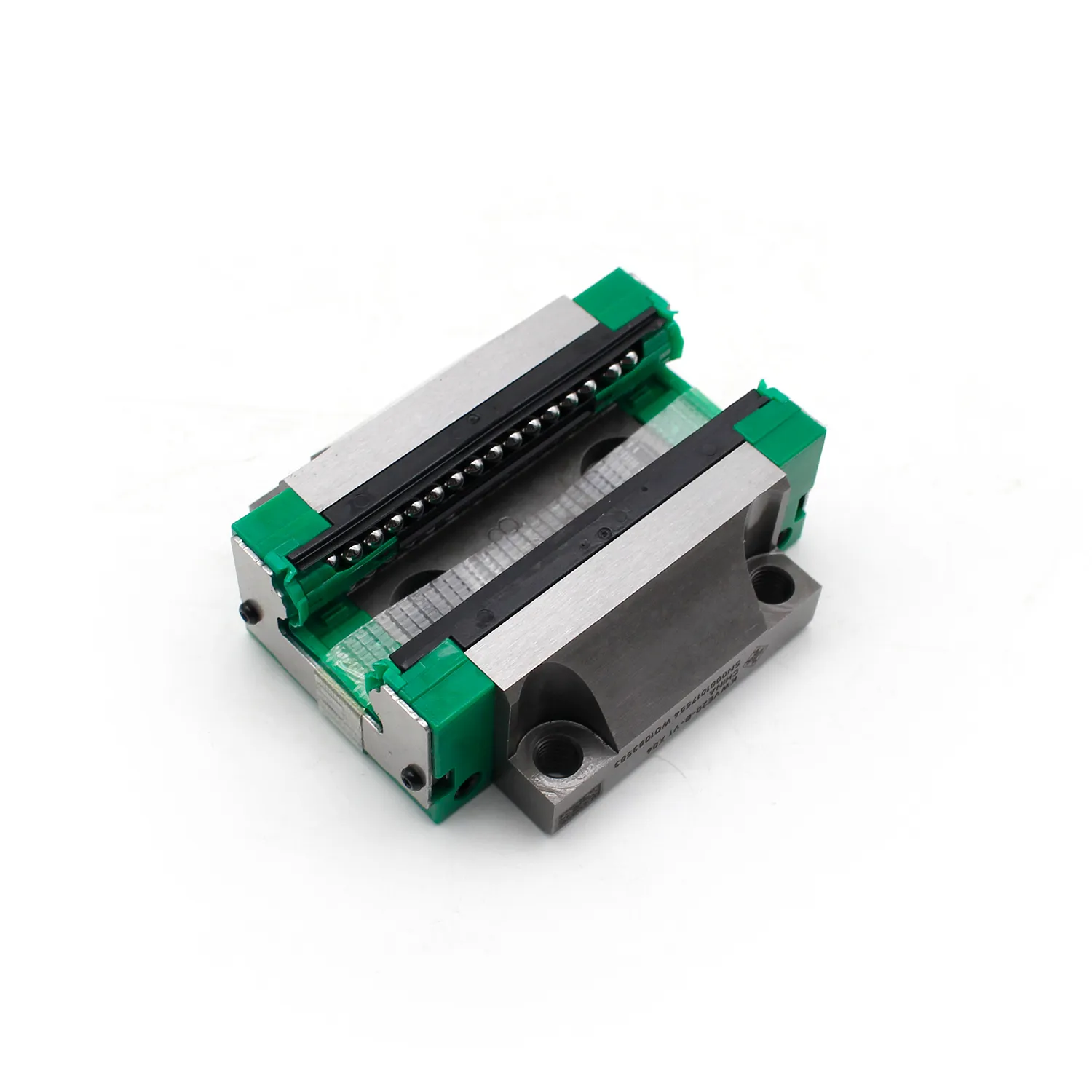

INA Linear Guide Carriage KWVE20-B-V1
The INA KWVE20-B-V1 is a four-row, full-complement ball linear guide carriage from Schaeffler's KWVE series, designed for high-load, high-rigidity applications requiring precise linear motion. It features a compact footprint with integrated sealing and lubrication options, suitable for CNC machinery, automation systems, and industrial equipment.
Product OverviewThe INA KWVE20-B-V1 is a four-row, full-complement ball linear guide carriage from Schaeffler’s KWVE series, designed for high-load, high-rigidity applications requiring precise linear motion. It features a compact footprint with integrated sealing and lubrication options, suitable for CNC machinery, automation systems, and industrial equipment.
Core Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Model | KWVE20-B-V1 | — | Series: KWVE20; Design: Standard carriage, four-row full-complement balls |
| Rail Width | 20 | mm | For use with 20mm-width INA linear guide rails |
| Carriage Dimensions | 71.4 (L) × 63 (W) × 27 (H) | mm | Length, width, height (system height) |
| Basic Dynamic Load Rating (C) | 13,100 | N | Radial load capacity under dynamic conditions |
| Basic Static Load Rating (C₀) | 27,000 | N | Radial load capacity under static conditions |
| Preload Class (V1) | Light preload (0.04C) | — | V1 = light preload; G3 = precision grade |
| Accuracy Class | G3 | — | High precision for tight tolerance applications |
| Weight | ~0.36–0.44 | kg | Typical unit weight (varies slightly by configuration) |
| Max Speed | Up to 360 | m/min | Dependent on rail length and operating conditions |
| Max Acceleration | Up to 150 | m/s² | For high-dynamics applications |
| Operating Temp Range | -10 to +80 | °C | Standard; extended with special lubrication |
Key Features & Design
- Four-Row Full-Complement Balls: Maximizes load capacity and rigidity by using the maximum number of rolling elements.
- Integrated Sealing: Equipped with end seals and sealing strips to protect against contaminants (e.g., dust, metal chips).
- Lubrication System: Features lubrication connectors for easy relubrication; pre-greased for initial use.
- High Rigidity: Optimized for moment load resistance (X/Y/Z axes) and stable positioning.
- Interchangeability: Compatible with standard KWVE20-series rails and accessories, simplifying installation and inventory management.
Suffix & Naming Notes
- B: Standard carriage, four-row full-complement ball set.
- V1: Light preload (0.04C); other options: V2 (medium), V3 (heavy).
- G3: Precision grade (ISO 14728); G2 = standard, G4 = ultra-precision.
Typical Applications
- High-precision CNC machining centers
- Industrial automation assembly lines
- Robotics and material handling systems
- Medical equipment and precision testing devices
- Packaging and printing machinery
