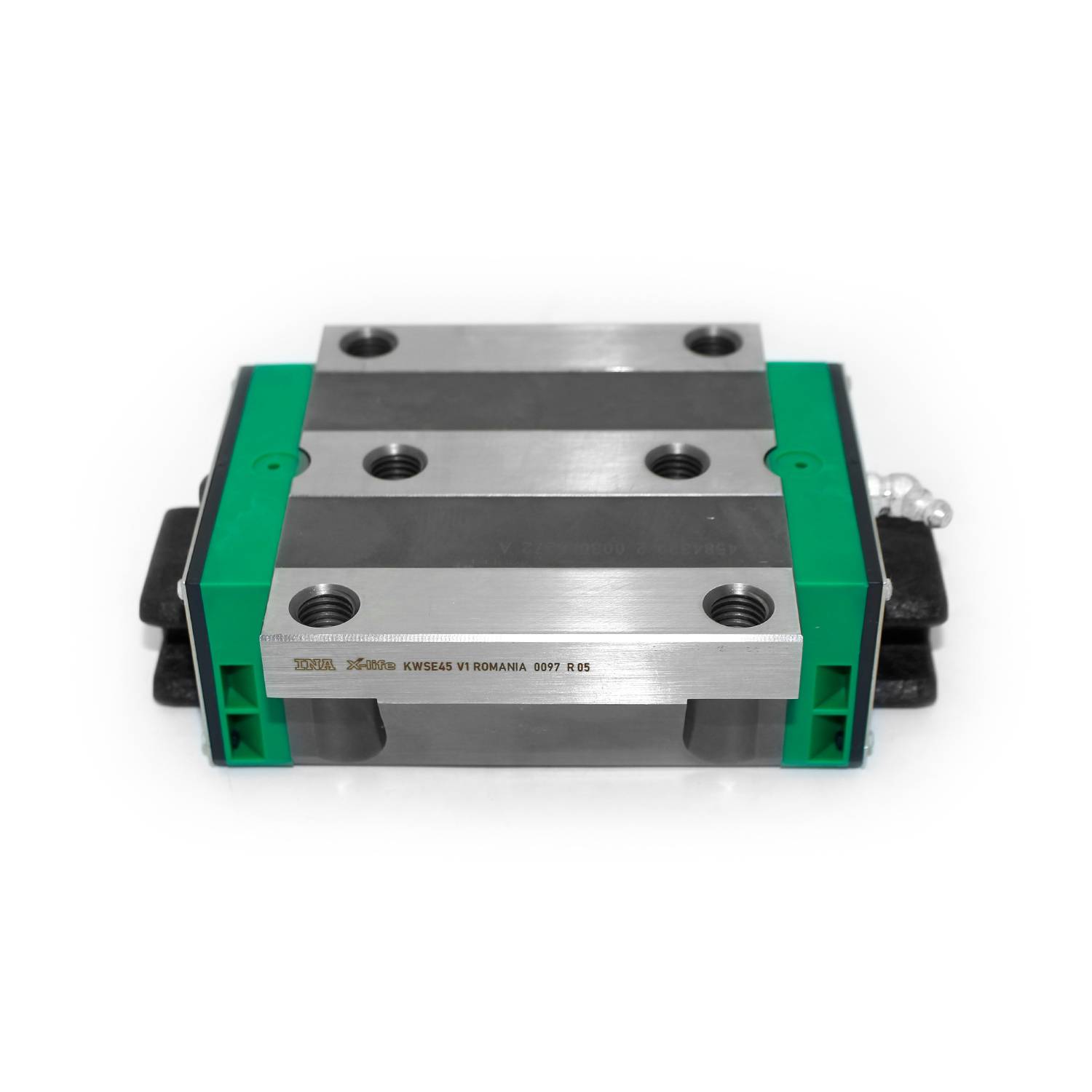

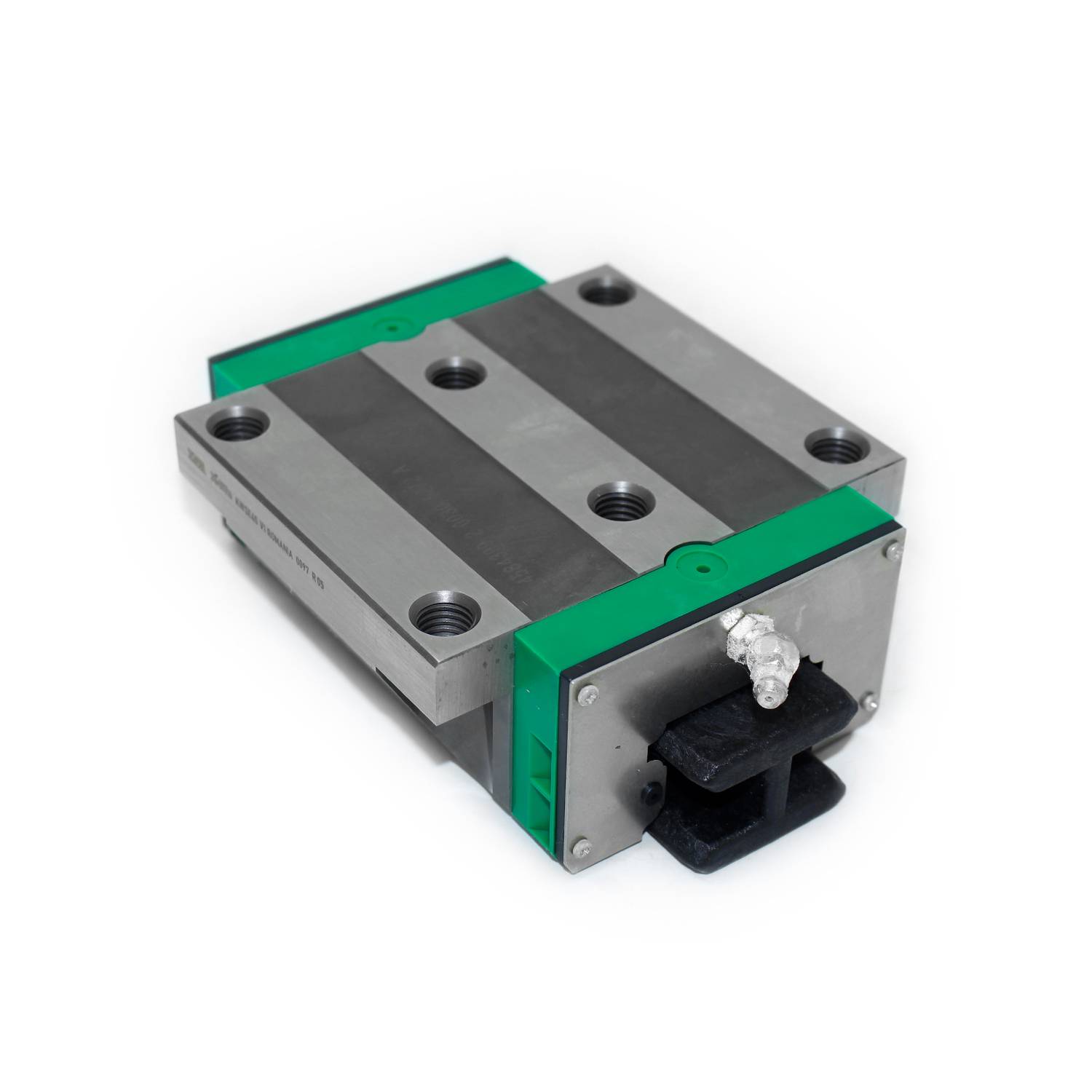

INA Linear Guide Carriage KWSE45-V1-G2

The INA KWSE45-V1-G2 is a six-row, full-complement ball linear guide carriage from Schaeffler's KWSE series (KUSE linear guide system). Engineered for extra-high load capacity, high rigidity, and precision linear motion, this standard-profile carriage features light preload and precision class G2, ideal for heavy-duty industrial applications requiring stable, backlash-free movement and high accuracy. It is designed for use with INA TKSD45 guide rails.

Email inquiries WhatsApp

The INA KWSE45-V1-G2 is a six-row, full-complement ball linear guide carriage from Schaeffler’s KWSE series (KUSE linear guide system). Engineered for extra-high load capacity, high rigidity, and precision linear motion, this standard-profile carriage features light preload and precision class G2, ideal for heavy-duty industrial applications requiring stable, backlash-free movement and high accuracy. It is designed for use with INA TKSD45 guide rails.

Core Specifications (Schaeffler Official Data)

Parameter	Value	Unit	Official Details
Model	KWSE45-V1-G2	—	Six-row full-complement ball; Standard carriage; Light preload (V1); Precision class (G2)
Rail Compatibility	TKSD45	—	For use with 45mm-width INA TKSD linear guide rails
Carriage Dimensions	Length (L): 138.7Width (B): 120Height (H): 60	mm	Overall length (with seals), width, system height
Basic Dynamic Load Rating (C)	80,000	N	Radial/dynamic load capacity (compressive direction)
Basic Static Load Rating (C₀)	174,000	N	Radial/static load capacity (compressive direction)
Dynamic Load (Tensile)	72,300	N	Basic dynamic load rating (tensile direction)
Static Load (Tensile)	117,400	N	Basic static load rating (tensile direction)
Preload Class (V1)	Light preload	—	Preload level: 0.04C (light preload for zero backlash)
Accuracy Class (G2)	Precision	—	Precision grade per ISO 14728 standard
Number of Ball Rows	6	—	Six-row ball configuration (4×45° + 2×60° contact angles)
Weight	Approx. 3.15	kg	Standard unit weight (Schaeffler catalog)
Max Speed	Up to 360	m/min	Maximum permissible linear speed
Max Acceleration	Up to 150	m/s²	Maximum operational acceleration
Operating Temperature Range	-10 to +80	°C	Standard operating temperature range
Lubrication	Grease / Oil	—	Pre-greased; integrated lubrication ports for re-lubrication
Sealing	Double-lip end seals + side seals	—	Multi-layer sealing against dust, chips, and contaminants

Key Design & Features

Six-Row Full-Complement Design: Eliminates the ball cage to maximize rolling element count, delivering exceptional load capacity. The 6-point contact geometry (4 rows at 45° for pressure, 2 rows at 60° for tension) uniformly absorbs forces and moments from all directions.
High Rigidity & Moment Resistance: Induction-hardened and precision-ground raceways ensure outstanding static and dynamic rigidity, providing excellent resistance to pitching, yawing, and rolling moments under heavy loads.
Light Preload (V1): Implements 0.04C light preload to achieve zero backlash while maintaining smooth, low-friction motion, perfect for precision machines with moderate dynamic loads.
G2 Precision Class: Manufactured to ISO 14728 G2 accuracy standards, guaranteeing tight tolerances for high-precision positioning and repeatability.
Robust Sealing System: Equipped with double-lip end seals and longitudinal side seals to prevent contamination ingress, extending service life in harsh industrial environments.
Easy Maintenance: Features integrated lubrication holes for convenient re-greasing without disassembly, reducing downtime.
Interchangeability: Fully interchangeable with standard INA TKSD45 rails and accessories, simplifying system design, installation, and inventory management.
