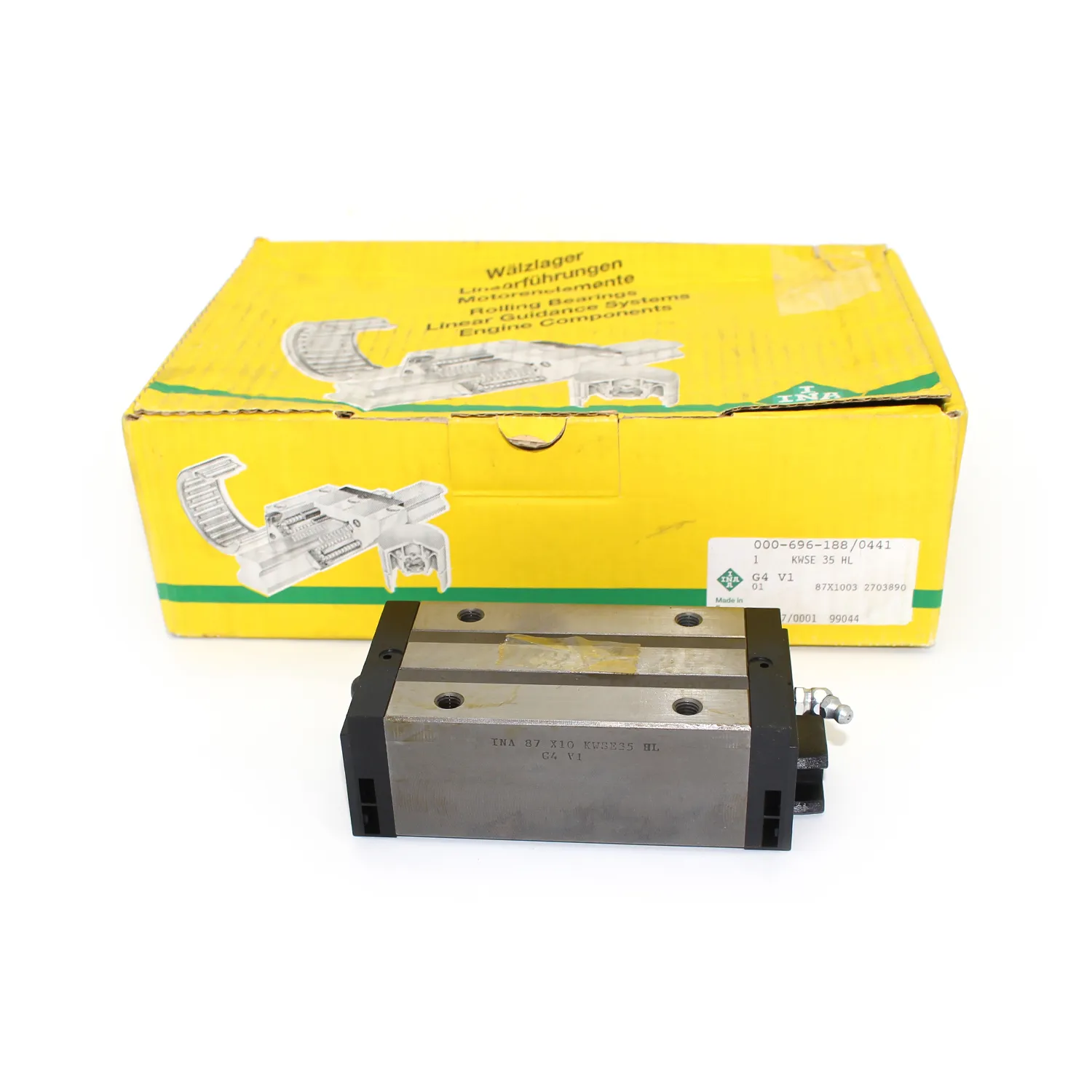

INA Linear Guide Carriage KWSE35-HL-G4-V1
The INA KWSE35-HL-G4-V1 is a six-row, full-complement ball linear guide carriage from Schaeffler’s KWSE (KUSE) series, featuring a high, narrow, long (HL) design. Engineered for exceptional load capacity, high rigidity, and standard precision, this carriage integrates light preload (V1) and G4 standard precision class, optimized for use with INA TKSD35 (34mm width) linear guide rails.
The INA KWSE35-HL-G4-V1 is a six-row, full-complement ball linear guide carriage from Schaeffler’s KWSE (KUSE) series, featuring a high, narrow, long (HL) design. Engineered for exceptional load capacity, high rigidity, and standard precision, this carriage integrates light preload (V1) and G4 standard precision class, optimized for use with INA TKSD35 (34mm width) linear guide rails.
Core Specifications (Schaeffler Official Data)
| Parameter | Value | Unit | Official Details |
|---|---|---|---|
| Model | KWSE35-HL-G4-V1 | — | Six-row full-complement ball; High/narrow/long (HL); G4 precision; Light preload (V1) |
| Rail Compatibility | TKSD35 (34mm width) | — | For use with 34mm-width INA TKSD linear guide rails |
| Carriage Dimensions | Length (L): 138.1Width (B): 70Height (H): 48 | mm | Overall length (with seals); standard narrow width; system height |
| Dynamic Load (Compression, C₁) | 62,000 | N | Basic dynamic load rating (compressive direction) |
| Static Load (Compression, C₀₁) | 128,000 | N | Basic static load rating (compressive direction) |
| Dynamic Load (Tension, C₂) | 49,000 | N | Basic dynamic load rating (tensile direction) |
| Static Load (Tension, C₀₂) | 89,000 | N | Basic static load rating (tensile direction) |
| Dynamic Load (Lateral, C₃) | 46,000 | N | Basic dynamic load rating (lateral direction) |
| Static Load (Lateral, C₀₃) | 96,000 | N | Basic static load rating (lateral direction) |
| Static Moment Ratings | M₀ₓ: 1,820M₀ᵧ: 1,470M₀z: 1,340 | Nm | Static moment resistance (x, y, z axes) |
| Preload Class (V1) | Light preload | — | Preload level: 0.04C (light preload for zero backlash) |
| Accuracy Class (G4) | Standard Precision | — | Standard precision grade per ISO 14728 |
| Number of Ball Rows | 6 | — | Six-row ball configuration (4×45° + 2×60° contact angles) |
| Weight | Approx. 1.80 | kg | Standard unit weight (Schaeffler medias) |
| Max Speed | Up to 360 | m/min | Maximum permissible linear speed |
| Max Acceleration | Up to 150 | m/s² | Maximum operational acceleration |
| Operating Temperature Range | -10 to +80 | °C | Standard operating temperature range |
| Lubrication | Grease / Oil | — | Pre-greased; integrated lubrication ports for re-lubrication |
| Sealing | Double-lip end seals + side sealing strips | — | Multi-layer sealing against dust, chips, contaminants |
Key Design & Features
- High, Narrow, Long (HL) Design: Extended-length (138.1mm), narrow-width (70mm) carriage with optimized height (48mm), delivering maximum load capacity and rigidity in space-constrained setups.
- Six-Row Full-Complement: Eliminates ball cage to maximize steel ball count, providing exceptional load capacity in all directions (compression, tension, lateral).
- 6-Point Contact Geometry: 4 rows at 45° (pressure) + 2 rows at 60° (tension) for uniform force absorption and outstanding moment resistance.
- Light Preload (V1): 0.04C light preload ensures zero backlash while maintaining smooth, low-friction motion.
- G4 Standard Precision: Manufactured to ISO 14728 G4 accuracy standards, suitable for general industrial precision applications.
- Robust Sealing: Equipped with double-lip end seals and longitudinal side sealing strips to prevent contamination ingress, extending service life.
- Easy Maintenance: Features integrated lubrication holes for convenient re-greasing without disassembly.
- Interchangeability: Fully interchangeable with INA TKSD35 rails and standard INA linear guide accessories.
Suffix Interpretation
- KWSE35: Six-row ball carriage for 35-series (34mm) rails
- HL: High, narrow, long design (extended length)
- G4: Standard precision accuracy class (ISO 14728)
- V1: Light preload (0.04C)
Typical Applications
- Heavy-duty CNC machine tools (milling, boring, grinding)
- Industrial automation & material handling systems
- Large robotic arms and heavy-duty positioning stages
- Packaging, printing, and textile machinery
- General precision measuring and testing equipment
- Machine building requiring high load/rigidity/moment resistance
