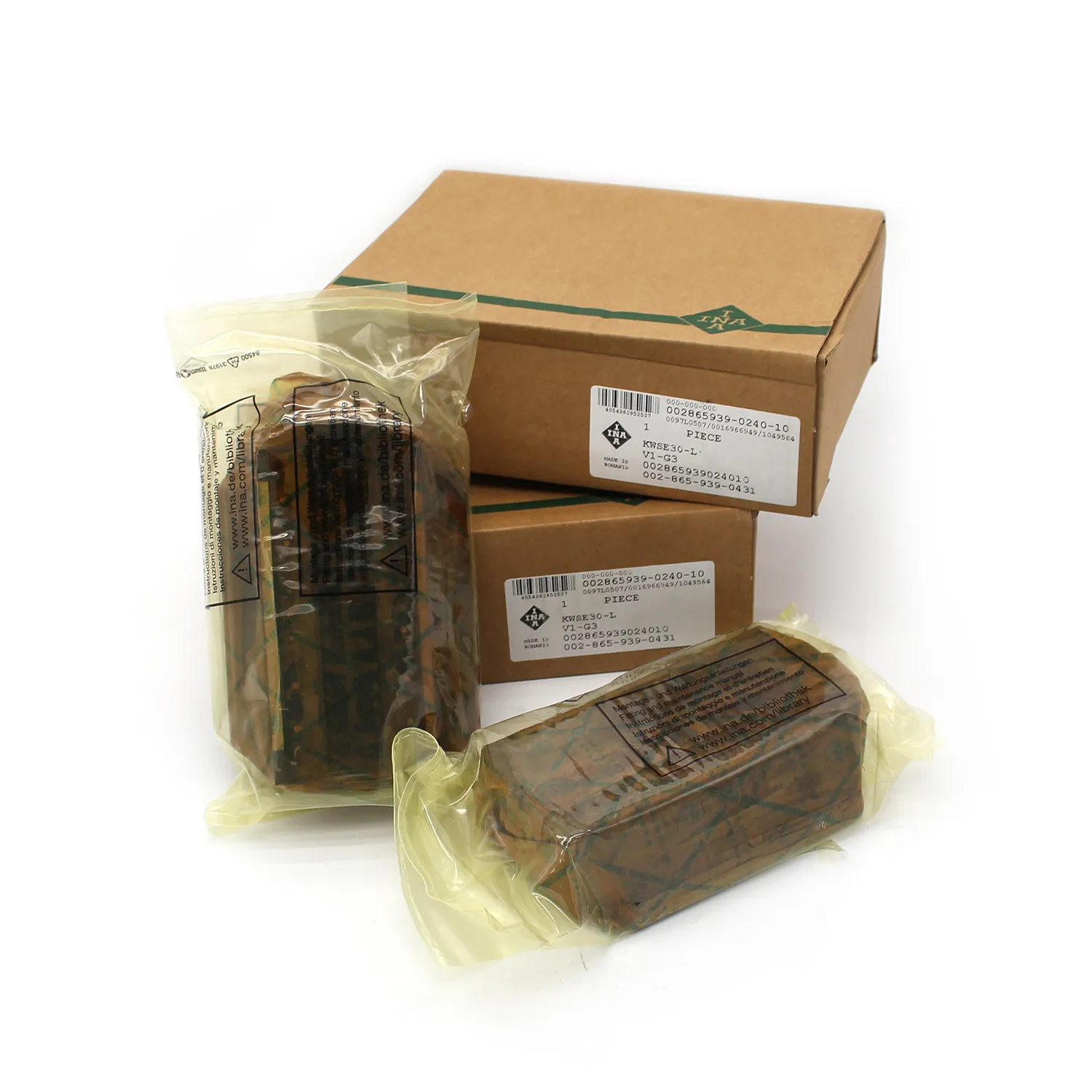

INA Linear Guide Carriage KWSE30-L-V1-G3
The INA KWSE30-L-V1-G3 is a six-row, full-complement ball linear guide carriage from Schaeffler's KWSE series (KUSE system). Engineered for extra-high load capacity, exceptional rigidity, and precision positioning, this long-version (L) carriage offers extended support and enhanced moment stability for heavy-duty, high-precision linear motion systems. It is designed for use with INA TKSD30 guide rails.
The INA KWSE30-L-V1-G3 is a six-row, full-complement ball linear guide carriage from Schaeffler’s KWSE series (KUSE system). Engineered for extra-high load capacity, exceptional rigidity, and precision positioning, this long-version (L) carriage offers extended support and enhanced moment stability for heavy-duty, high-precision linear motion systems. It is designed for use with INA TKSD30 guide rails.
Core Specifications (Schaeffler Official Data)
| Parameter | Value | Unit | Official Details |
|---|---|---|---|
| Model | KWSE30-L-V1-G3 | — | Six-row full-complement ball; Long carriage (L); Light preload (V1); Precision class (G3) |
| Rail Compatibility | TKSD30 | — | For use with 30mm-width INA TKSD linear guide rails |
| Carriage Dimensions | Length (L): 119.3Width (B): 90Height (H): 42 | mm | Overall length (with seals), width, system height |
| Basic Dynamic Load Rating (C) | 51,000 | N | Radial/dynamic load capacity (standard direction) |
| Basic Static Load Rating (C₀) | 113,000 | N | Radial/static load capacity (standard direction) |
| Preload Class (V1) | Light preload | — | Preload level: 0.04C (light preload for zero backlash) |
| Accuracy Class (G3) | High precision | — | High accuracy grade per ISO 14728 |
| Number of Ball Rows | 6 | — | Six-row ball configuration (4×45° + 2×60° contact angles) |
| Weight | Approx. 1.55 | kg | Standard unit weight (Schaeffler catalog) |
| Max Speed | Up to 360 | m/min | Maximum permissible linear speed |
| Max Acceleration | Up to 150 | m/s² | Maximum operational acceleration |
| Operating Temperature Range | -10 to +100 | °C | Standard operating temperature range |
| Lubrication | Grease / Oil | — | Pre-greased; integrated lubrication ports for re-lubrication |
| Sealing | Double-lip end seals + side seals | — | Multi-layer sealing against dust, chips, and contaminants |
Key Design & Features
- Six-Row Full-Complement Design: Maximizes load capacity by eliminating the cage and packing maximum steel balls. The 6-row contact geometry (4 rows at 45° for pressure, 2 rows at 60° for tension) uniformly absorbs forces and moments from all directions.
- Long Carriage (L): Extended length (119.3mm) provides greater support span, significantly improving resistance to pitching, yawing, and rolling moments compared to the standard KWSE30. Ideal for long-rail, overhung, or high-disturbance loads.
- High Rigidity: Induction-hardened and precision-ground raceways deliver exceptional static and dynamic rigidity, ensuring stable, precise positioning under heavy loads.
- Light Preload (V1): Delivers zero backlash with smooth, low-friction motion, ideal for precision machines requiring moderate dynamics and high accuracy.
- Robust Sealing System: Equipped with double-lip end seals and longitudinal side seals to prevent contamination ingress, extending service life in harsh industrial environments.
- Easy Maintenance: Features integrated lubrication holes for convenient re-greasing without disassembly.
- Interchangeability: Fully interchangeable with standard INA TKSD30 rails and accessories, simplifying system design and inventory.
Suffix Interpretation
- KWSE30: Standard-profile six-row ball carriage for 30mm rails
- L: Long-version carriage (extended length)
- V1: Light preload (0.04C)
- G3: High accuracy class (ISO 14728)
Typical Applications
- Heavy-duty CNC machine tools (milling, boring, grinding, gantry machines)
- Large-scale automation & material handling systems
- Industrial robots and precision positioning stages
- Machine building requiring high load/rigidity/moment resistance
- Packaging, printing, and textile machinery
- Precision measuring and testing equipment
- Heavy machine tools with long travel and high stability requirements
