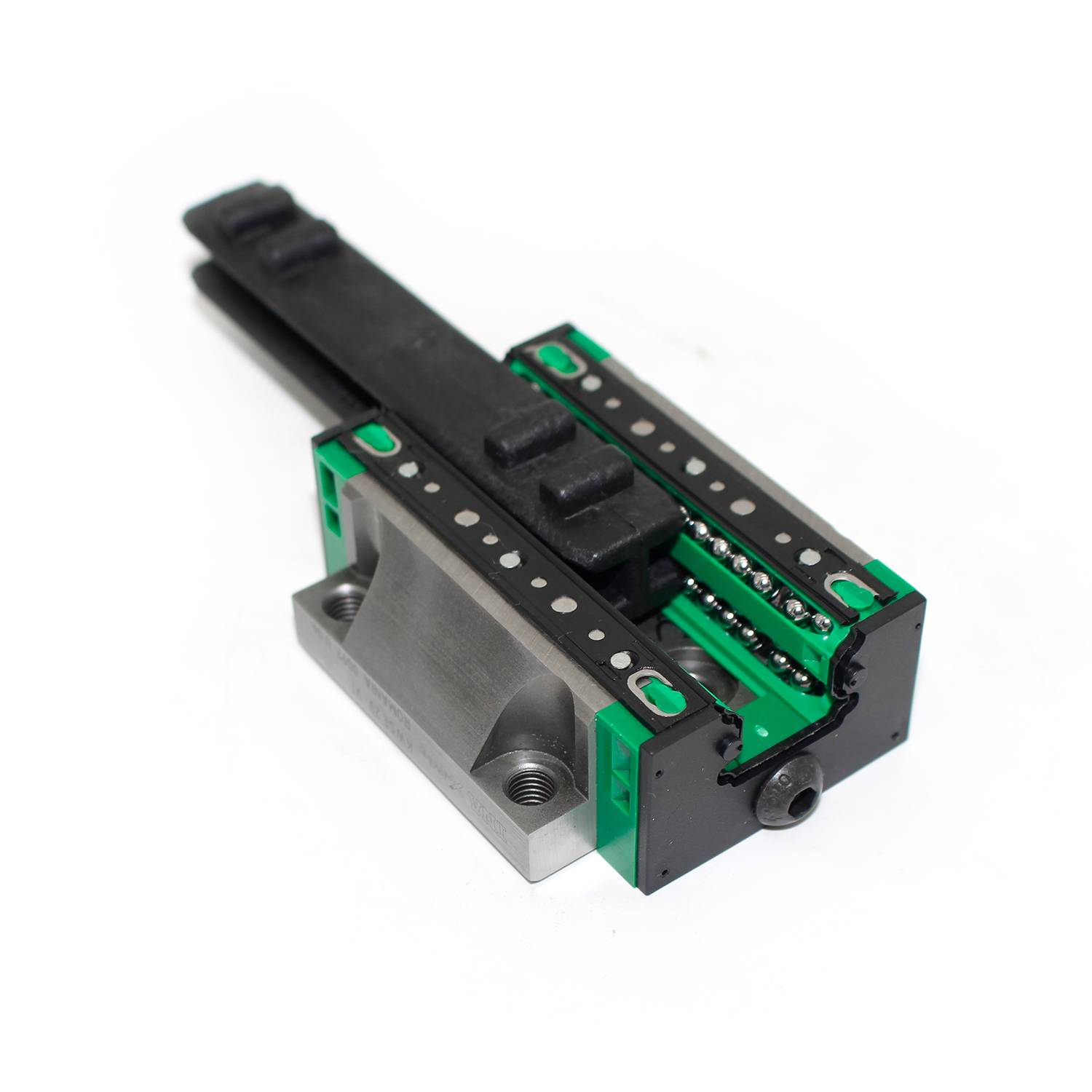

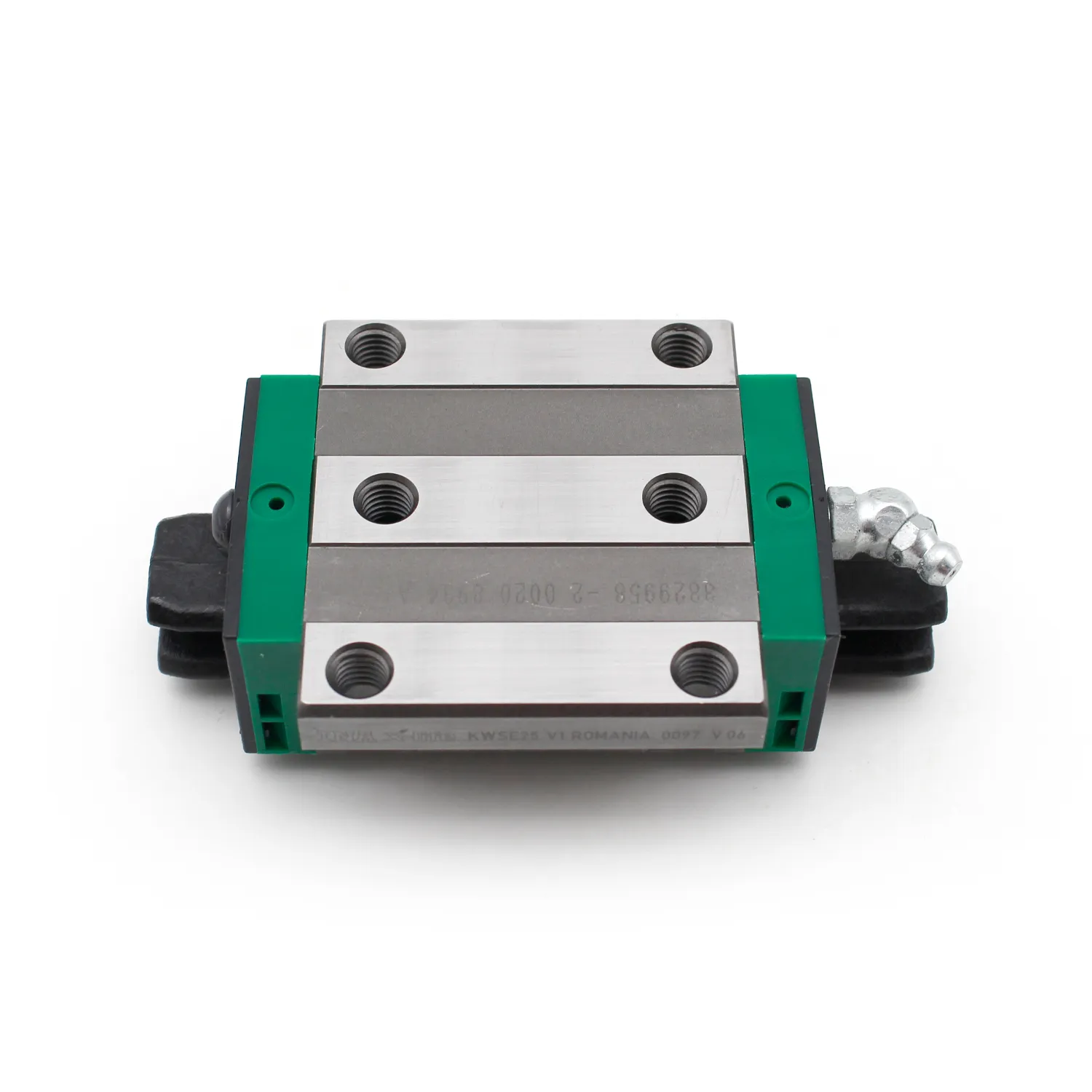

INA Linear Guide Carriage KWSE25-V1
The INA KWSE25-V1 is a six-row, full-complement ball linear guide carriage from Schaeffler's KWSE series (part of the KUSE linear guide system). Engineered for exceptionally high load capacity, rigidity, and precision, it features a standard-profile design with light preload, ideal for heavy-duty linear motion applications requiring stable, accurate positioning under combined loads. It is compatible with INA TKSD25-series guide rails.
The INA KWSE25-V1 is a six-row, full-complement ball linear guide carriage from Schaeffler’s KWSE series (part of the KUSE linear guide system). Engineered for exceptionally high load capacity, rigidity, and precision, it features a standard-profile design with light preload, ideal for heavy-duty linear motion applications requiring stable, accurate positioning under combined loads. It is compatible with INA TKSD25-series guide rails.
Core Specifications (Schaeffler Official Data)
| Parameter | Value | Unit | Official Details |
|---|---|---|---|
| Model | KWSE25-V1 | — | Six-row full-complement ball carriage; standard height; light preload |
| Rail Compatibility | TKSD25 | — | For use with 25mm-width INA TKSD linear guide rails |
| Carriage Dimensions | 81.8 (L) × 70 (W) × 30.8 (H) | mm | Overall length, width, system height |
| Basic Dynamic Load Rating (C) | 28,000 | N | Radial/dynamic load capacity (standard direction) |
| Basic Static Load Rating (C₀) | 67,000 | N | Radial/static load capacity (standard direction) |
| Preload Class (V1) | Light preload | — | Preload level: 0.04C (light preload for zero backlash) |
| Number of Ball Rows | 6 | — | Six-row ball configuration (4×45° + 2×60° contact angles) |
| Weight | Approx. 0.80 | kg | Standard unit weight (Schaeffler catalog) |
| Max Speed | Up to 360 | m/min | Maximum permissible linear speed |
| Max Acceleration | Up to 150 | m/s² | Maximum operational acceleration |
| Operating Temperature Range | -10 to +100 | °C | Standard operating temperature range |
| Lubrication | Grease / Oil | — | Pre-greased; equipped with lubrication ports for re-lubrication |
| Sealing | Double-lip end seals + side seals | — | Integrated multi-layer sealing against contaminants |
Key Design & Features

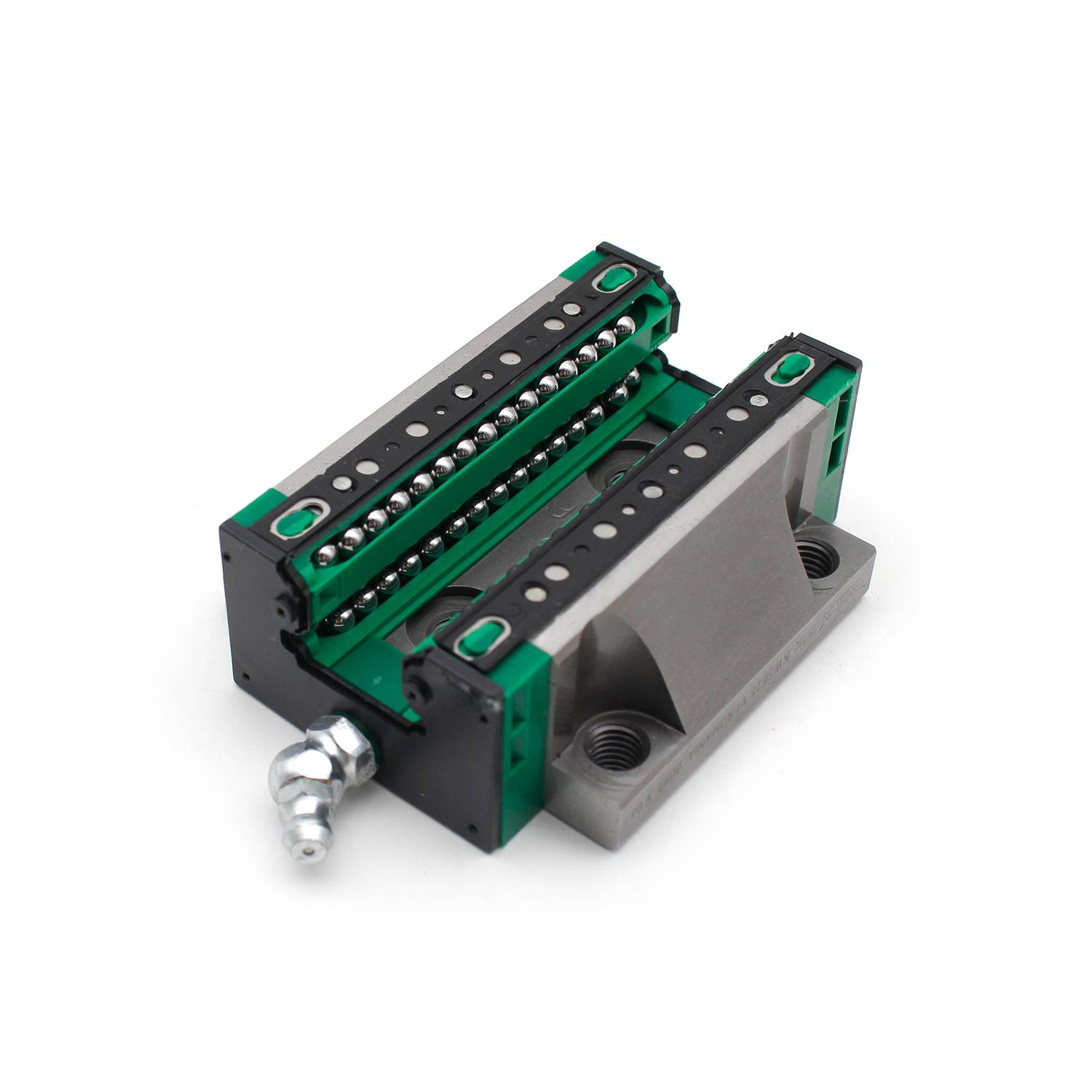

- Six-Row Full-Complement Balls: Maximizes load capacity with maximum rolling elements; four rows at 45° (pressure load) and two rows at 60° (tension load), absorbing forces from all directions.
- High Rigidity & Moment Resistance: Optimized for high static/dynamic rigidity and excellent resistance to tilting, yawing, and rolling moments.
- Light Preload (V1): Delivers zero backlash with smooth motion, suitable for precision machines with moderate dynamic loads.
- Full-Complement Design: Eliminates cage, increasing ball count for superior load capacity vs. standard four-row carriages.
- Robust Sealing: Dual end seals and perimeter seals protect internal components from dust, chips, and fluids.
- Easy Lubrication: Integrated lubrication holes enable convenient re-greasing without disassembly.
- Precision Manufacture: Carriage and rail raceways are induction-hardened and precision-ground for consistent accuracy.
Suffix Interpretation
- KWSE25: Standard-profile six-row ball carriage for 25mm rails
- V1: Light preload (0.04C)
- (Accuracy class G2/G3/G4 typically added as suffix, e.g., KWSE25-V1-G2)
Typical Applications
- Heavy-duty CNC machine tools (milling, boring, grinding machines)
- Large-scale automation and material handling systems
- Industrial robots and precision positioning stages
- Machine building with high load/rigidity demands
- Packaging, printing, and textile machinery
- Precision measuring and testing equipment
