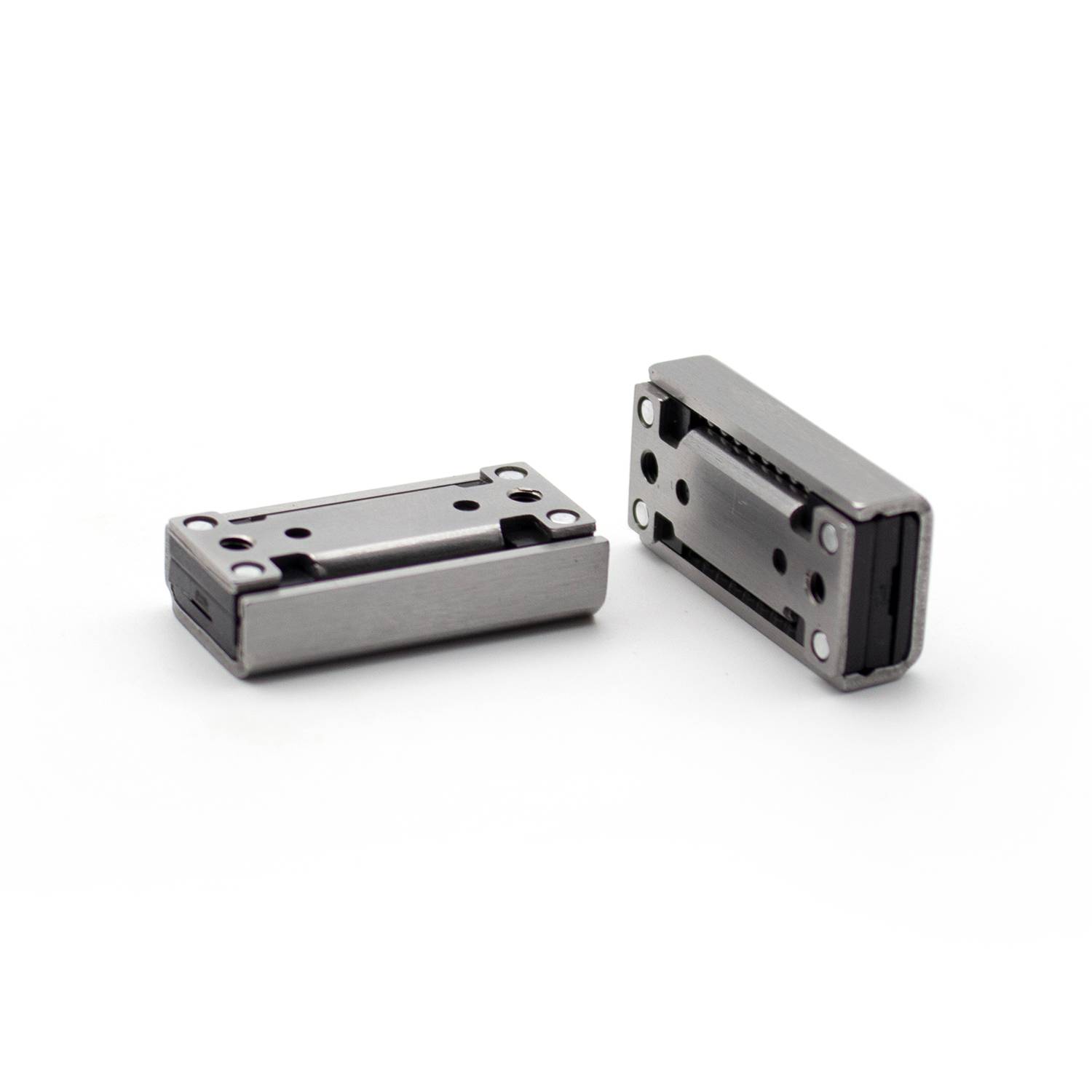

IKO Precision Linear Slide Unit BSR1530SL T1
The BSR1530SL T1 is a compact, endless linear motion precision slide unit from IKO (Nippon Thompson). Part of the BSR series, it features a stainless steel construction, endless ball recirculation design, and standard precision (T1). Engineered for applications requiring smooth, quiet, and accurate linear motion in small, space-constrained mechanisms.
The BSR1530SL T1 is a compact, endless linear motion precision slide unit from IKO (Nippon Thompson). Part of the BSR series, it features a stainless steel construction, endless ball recirculation design, and standard precision (T1). Engineered for applications requiring smooth, quiet, and accurate linear motion in small, space-constrained mechanisms.
Core Specifications (IKO Official Data)
| Parameter | Value | Unit |
|---|---|---|
| Part Number | BSR1530SL T1 | — |
| Series | BSR (Endless Linear Motion Type) | — |
| Table Width (W) | 15 | mm |
| Table Length (L) | 30 | mm |
| Overall Height (H) | 6.5 | mm |
| Bed Width (B) | 12 | mm |
| Maximum Stroke | 10 | mm |
| Weight | 0.013 | kg |
| Basic Dynamic Load Rating (C) | 466 | N |
| Basic Static Load Rating (C₀) | 309 | N |
| Accuracy Class | T1 (Standard Precision) | — |
| Material | Stainless Steel (Balls/Raceways) | — |
| Ball Configuration | Two rows, four-point contact | — |
| Mounting Screws | M3 | — |
| Lubrication | Grease or oil (not pre-packed) | — |
| Temperature Range | -10 to +80 | °C |
| Sealing | Integrated contact seals | — |
Key Features & Applications
- Ultra-Compact & Lightweight: Miniature profile (6.5 mm height, 0.013 kg) ideal for small-scale precision equipment and portable devices.
- Stainless Steel Construction: Balls and raceways made of stainless steel for excellent corrosion resistance, suitable for cleanroom environments.
- Endless Ball Recirculation: Special resin circulator enables long stroke lengths with low noise and smooth operation.
- Two-Row, Four-Point Contact: Withstands loads in all directions (radial, reverse radial, and lateral) for stable performance.
- High Precision (T1): Precisely ground raceways ensure minimal positional error and consistent repeatability.
- Smooth & Quiet Motion: Optimized ball retainer design reduces friction and noise for high-precision positioning.
- Wide Applications: Semiconductor manufacturing, measuring instruments, inspection devices, medical equipment, and precision automation.
Suffix Explanation
- BSR: Endless linear motion type precision slide unit.
- 15: Table width (15 mm).
- 30: Table length (30 mm).
- SL: Standard slide configuration.
- T1: Standard accuracy/precision class.
