Timken inch tapered roller bearings HM518445/HM518410 88.90x152.40x39.688mm

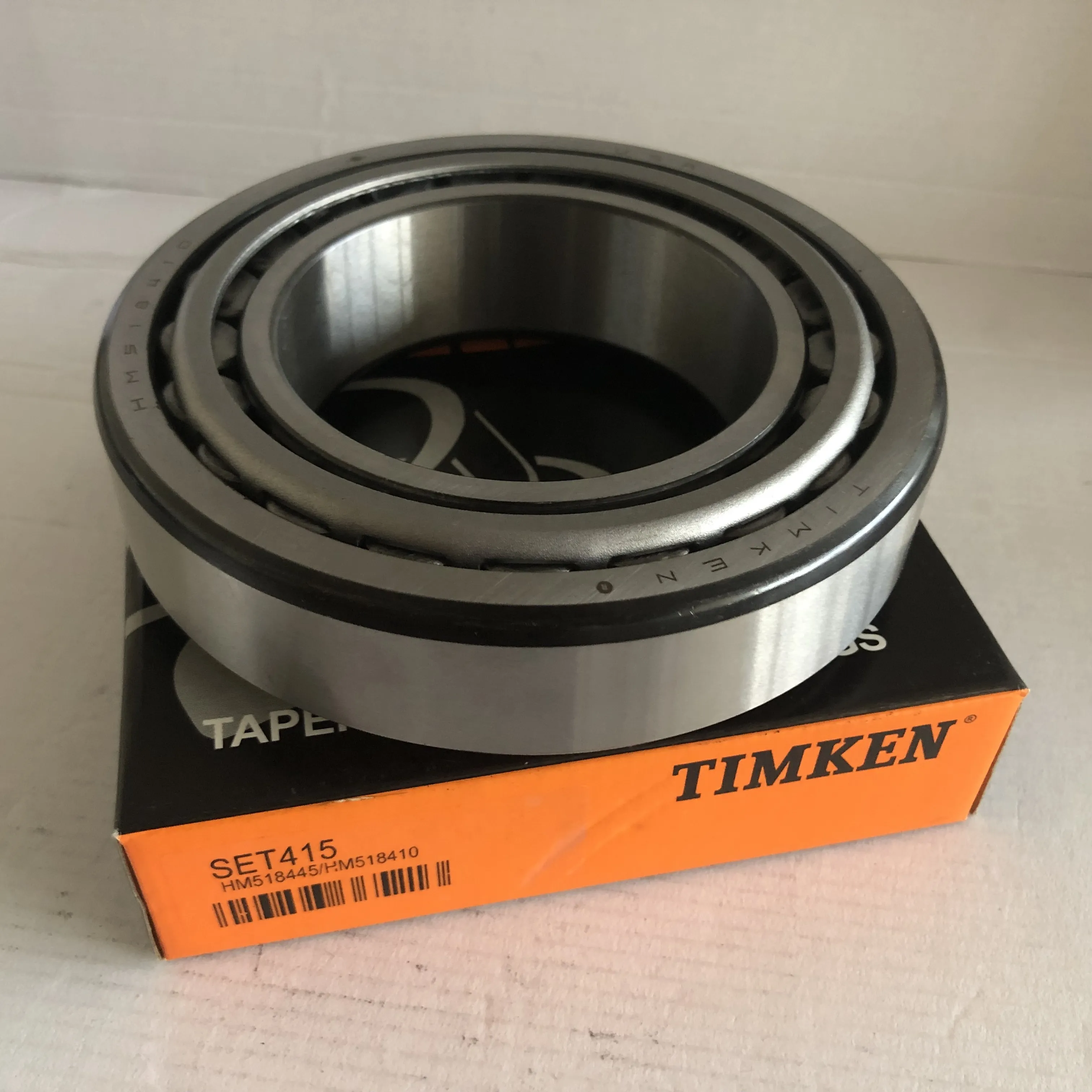

TIMKEN HM518445/HM518410 is a heavy-duty single-row tapered roller bearing, consisting of a separable cone (HM518445) and cup (HM518410). With an 88.9 mm bore, 152.4 mm outer diameter, and 39.688 mm width, it excels at handling heavy combined radial and axial loads. Ideal for commercial truck wheel hubs, trailers, and agricultural machinery, it ensures reliable performance in harsh working conditions.
TIMKEN HM518445/HM518410 is a heavy-duty single-row tapered roller bearing, consisting of a separable cone (HM518445) and cup (HM518410). With an 88.9 mm bore, 152.4 mm outer diameter, and 39.688 mm width, it excels at handling heavy combined radial and axial loads. Ideal for commercial truck wheel hubs, trailers, and agricultural machinery, it ensures reliable performance in harsh working conditions.
| Item | HM518445/HM518410 |
| Type | tapered roller bearing |
| Brand | Timken |
| Country of origin | USA |
| Bore diameter | 88.90 mm |
| Outside diameter | 152.40 mm |
| Width | 39.688 mm |
| Basic dynamic load rating | 297 kN |
| Basic static load rating | 404 kN |
| Limiting speed | 3,200 1/min |
| Weight | 2.86 kg |
| Application | trailer wheel hubs, drive axles, and agricultural equipment etc. |
| Models available in stock | |||||||
| 30202 | 30302 | 31305 | 32004X | 32204 | 32303 | 33005 | 33205 |
| 30203 | 30303 | 31306 | 32005X | 32205 | 32304 | 33006 | 33206 |
| 30204 | 30304 | 31307 | 32006X | 32206 | 32305 | 33007 | 33207 |
| 30205 | 30305 | 31308 | 32007X | 32207 | 32306 | 33008 | 33208 |
| 30206 | 30306 | 31309 | 32008X | 32208 | 32307 | 33009 | 33209 |
| 30207 | 30307 | 31310 | 32009X | 32209 | 32308 | 33010 | 33210 |
| 30208 | 30308 | 31311 | 32010X | 32210 | 32309 | 33011 | 33211 |
| 30209 | 30309 | 31312 | 32011X | 32211 | 32310 | 33012 | 33212 |
| 30210 | 30310 | 31313 | 32012X | 32212 | 32311 | 33013 | 33213 |
| 30211 | 30311 | 31314 | 32013X | 32213 | 32312 | 33014 | 33214 |
| 30212 | 30312 | 31315 | 32014X | 32214 | 32313 | 33015 | 33215 |
| 30213 | 30313 | 31316 | 32015X | 32215 | 32314 | 33019 | 33216 |
| 30214 | 30314 | 31317 | 32016X | 32216 | 32315 | 33022 | 33217 |
| 30215 | 30315 | 31318 | 32017X | 32217 | 32316 | 33220 | |
| 30216 | 30316 | 31319 | 32018X | 32218 | 32317 | ||
| 30217 | 30317 | 31320 | 32019X | 32219 | 32318 | ||
| 30218 | 30318 | 31321 | 32020X | 32220 | 32319 | ||
| 30219 | 30319 | 31322 | 32021X | 32221 | 32320 | ||
| 30220 | 30320 | 31324 | 32022X | 32222 | 32321 | ||
| 30221 | 30321 | 31326 | 32024X | 32224 | 32322 | ||
| 30222 | 30322 | 31328 | 32026X | 32226 | 32324 | ||
| 30224 | 30324 | 31330 | 32028X | 32228 | 32334 | ||
| 30226 | 30326 | 32030X | 32230 | ||||
| 30228 | 30328 | 32032X | 32232 | ||||
| 30230 | 30330 | 32034X | 32234 | ||||
| 30232 | 30332 | 32036X | 32236 | ||||
| 30234 | 30334 | 32038X | 32238 | ||||
| 30236 | 32040X | 32240 | |||||
| 30238 | 32044X | 32244 | |||||
| 30240 | 32048X | ||||||
