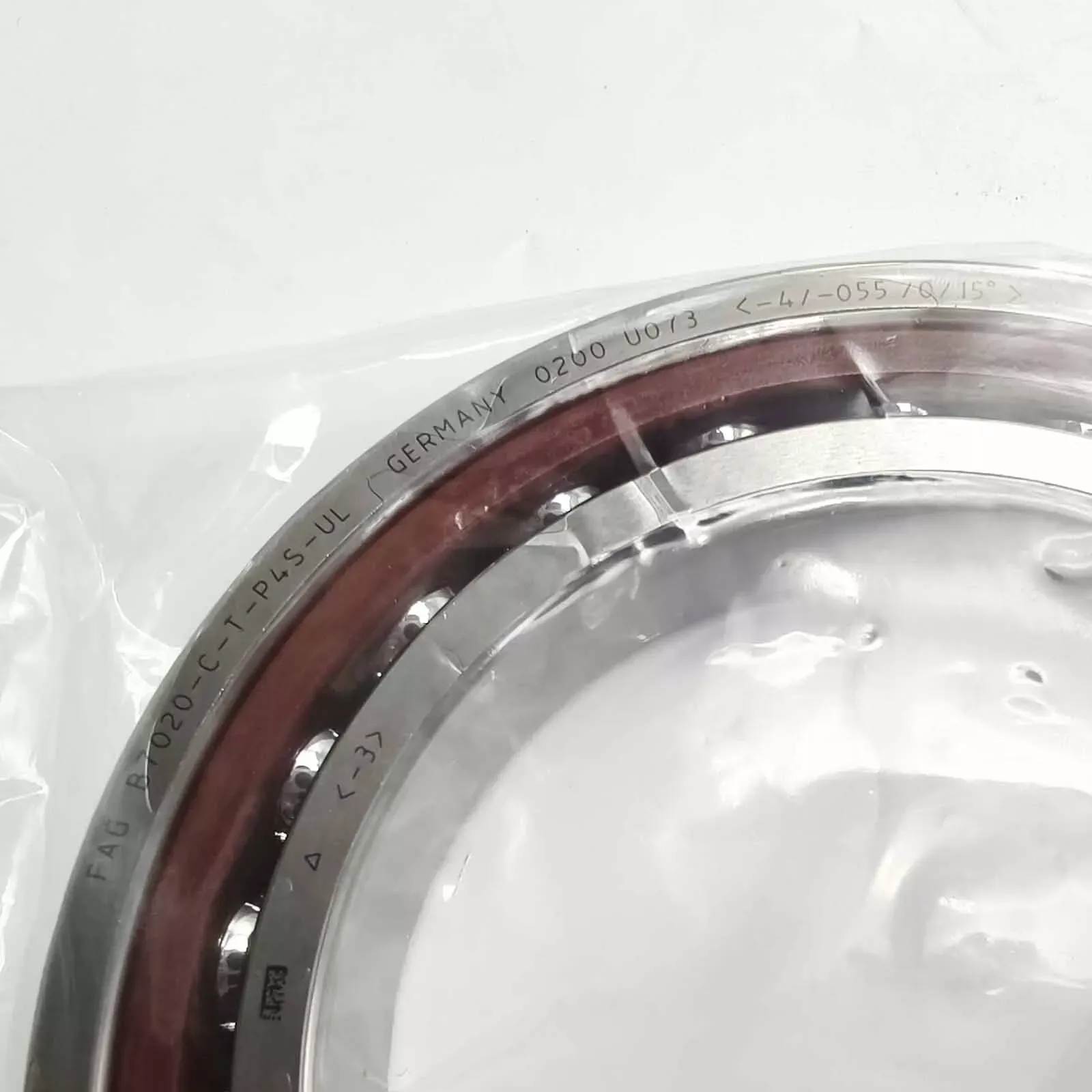

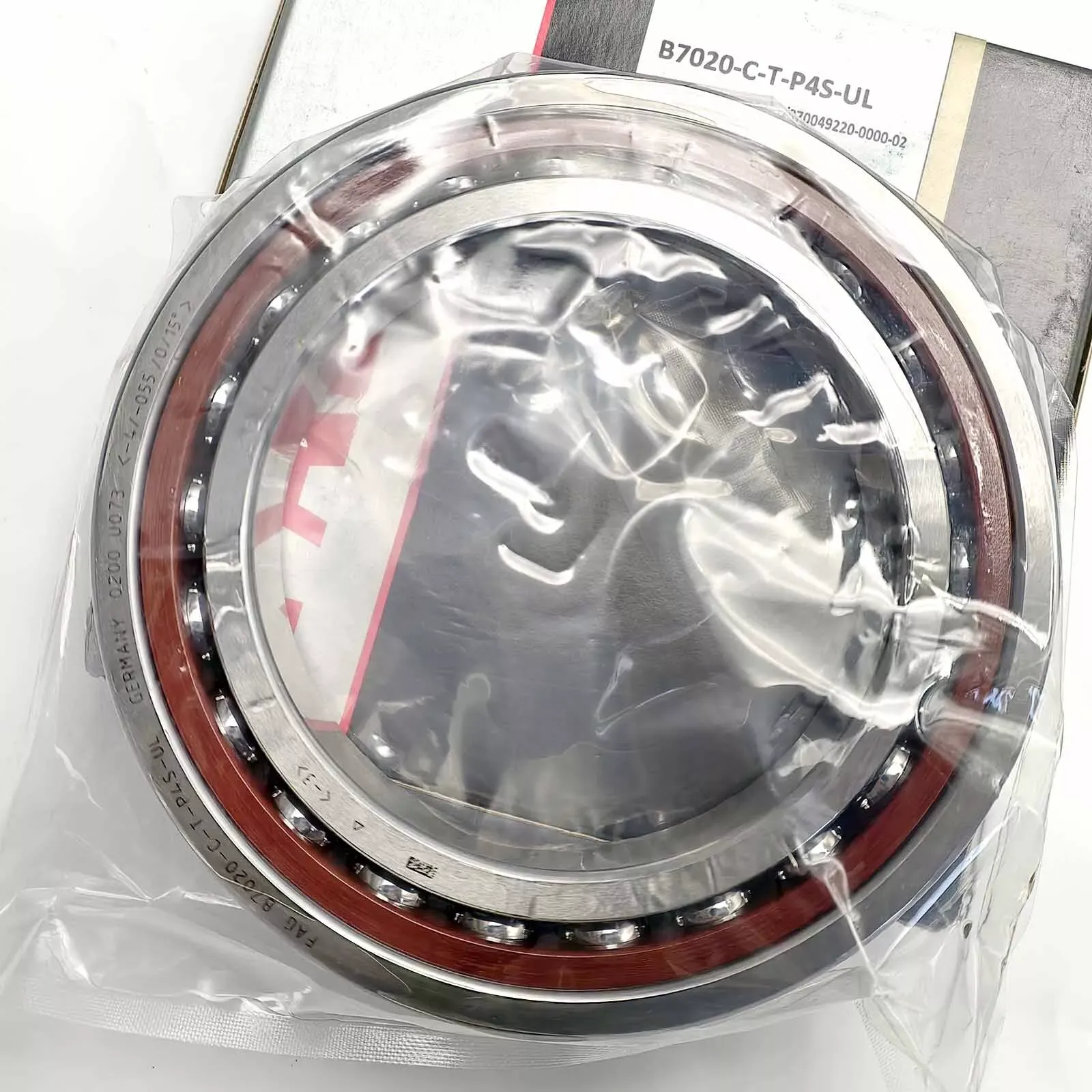

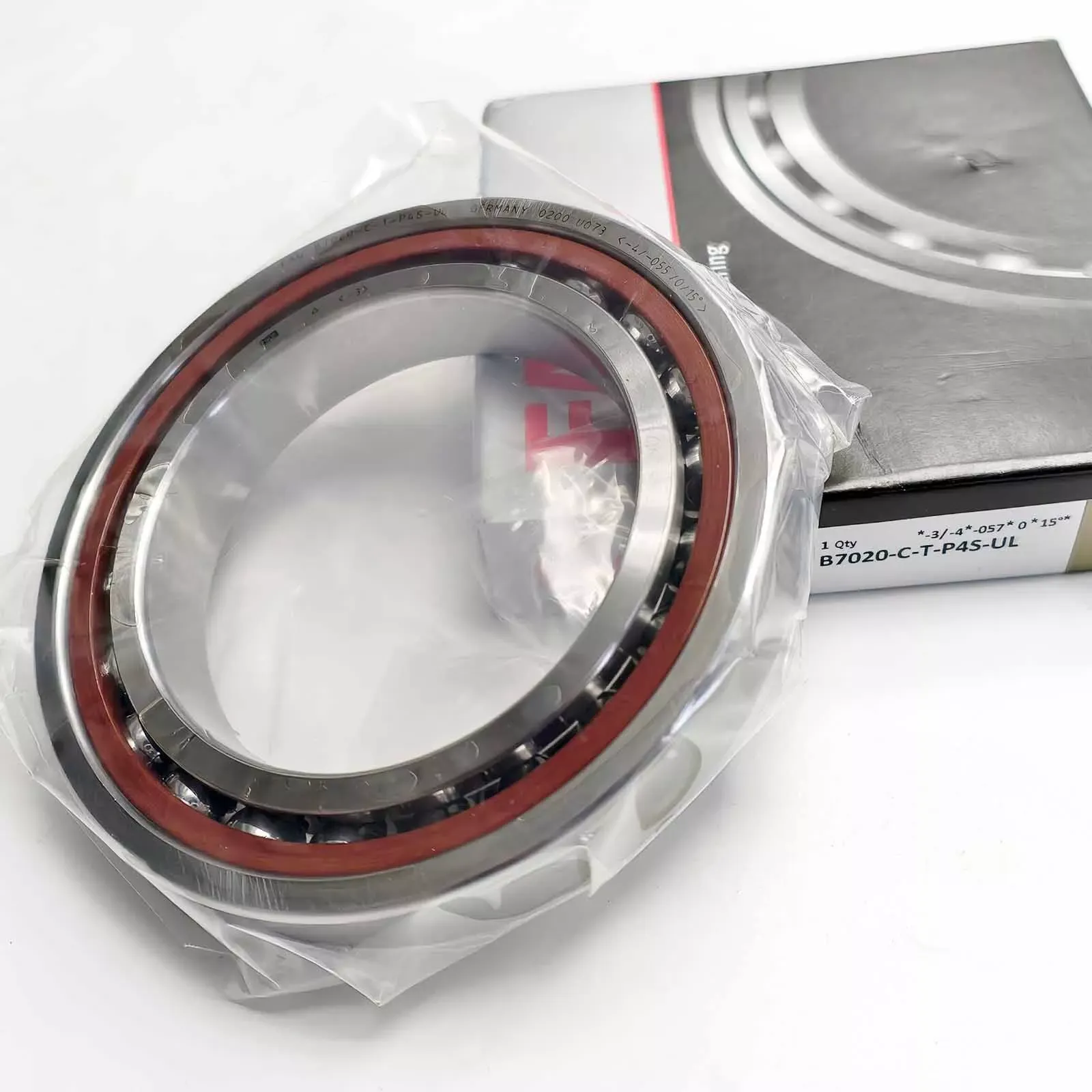

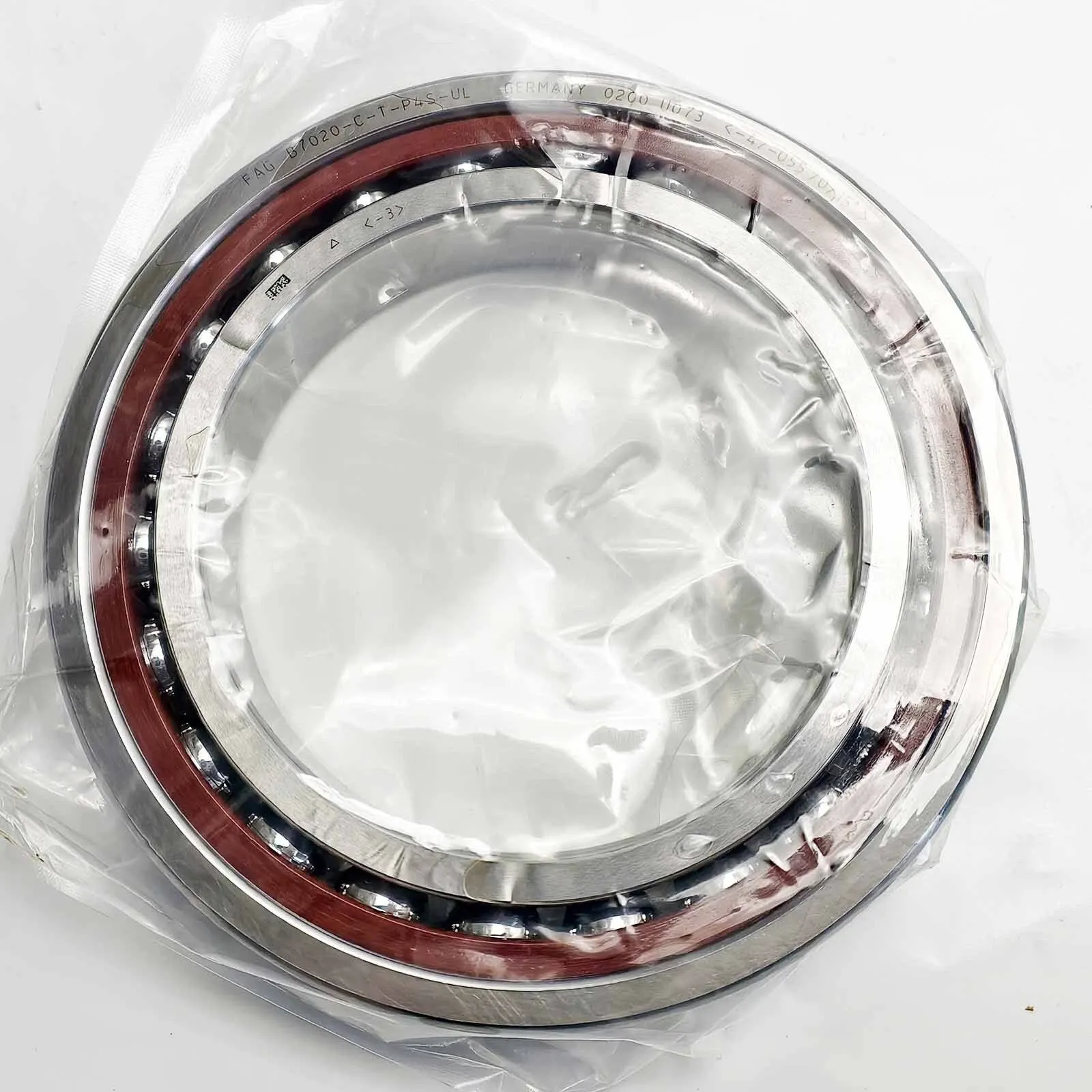

FAG Spindle bearings B7020-C-T-P4S-UL 100x150x24mm
The INA B7020-C-T-P4S-UL is a high-precision angular contact ball bearing engineered for demanding industrial applications. As a core product of INA‘s premium bearing series, it integrates exceptional rotational accuracy, load-bearing capacity and operational stability.
The INA B7020-C-T-P4S-UL is a high-precision angular contact ball bearing engineered for demanding industrial applications. As a core product of INA's premium bearing series, it integrates exceptional rotational accuracy, load-bearing capacity and operational stability.
Key features of this bearing include a 15° contact angle (designated by "C"), ensuring reliable axial load handling alongside radial load support. The "T" indicates a tough cage structure that maintains optimal ball guidance, while the "P4S" grade represents ultra-high precision, making it suitable for high-speed rotating systems. The "UL" suffix denotes universal matching capability, facilitating flexible installation in paired configurations.

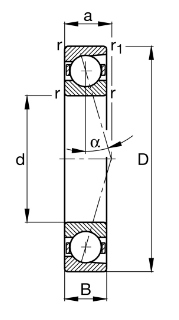

Typical dimensions are 100mm inner diameter, 150mm outer diameter, and 24mm width. Constructed from high-quality AISI 52100 steel, it boasts excellent wear resistance and can operate within a temperature range of -30°C to 100°C. This bearing is widely applied in precision machine tool spindles, high-speed motors and other precision transmission equipment requiring superior performance.
| Item | B7020-C-T-P4S-UL |
| Type | spindle bearing/angular contact ball bearing |
| Brand | INA |
| Country of origin | Germany |
| Bore diameter | 100 mm |
| Outside diameter | 150 mm |
| Width | 24 mm |
| Basic dynamic load rating, radial | 83,000 N |
| Basic static load rating, radial | 57,000 N |
| Fatigue load limit, radial | 5,400 N |
| Limiting speed | 14,000 1/min |
| Weight | 1.24 kg |
| Application | precision machine tool spindles, high-speed motors etc. |
| Models available in stock | |
| B7000-C-T-P4S-UL | B7200-C-T-P4S-UL |
| B7001-C-T-P4S-UL | B7201-C-T-P4S-UL |
| B7002-C-T-P4S-UL | B7202-C-T-P4S-UL |
| B7003-C-T-P4S-UL | B7203-C-T-P4S-UL |
| B7004-C-T-P4S-UL | B7204-C-T-P4S-UL |
| B7005-C-T-P4S-UL | B7205-C-T-P4S-UL |
| B7006-C-T-P4S-UL | B7206-C-T-P4S-UL |
| B7007-C-T-P4S-UL | B7207-C-T-P4S-UL |
| B7008-C-T-P4S-UL | B7208-C-T-P4S-UL |
| B7009-C-T-P4S-UL | B7209-C-T-P4S-UL |
| B7010-C-T-P4S-UL | B7210-C-T-P4S-UL |
| B7011-C-T-P4S-UL | B7211-C-T-P4S-UL |
| B7012-C-T-P4S-UL | B7212-C-T-P4S-UL |
| B7013-C-T-P4S-UL | B7213-C-T-P4S-UL |
| B7014-C-T-P4S-UL | B7214-C-T-P4S-UL |
| B7015-C-T-P4S-UL | B7215-C-T-P4S-UL |
| B7016-C-T-P4S-UL | B7216-C-T-P4S-UL |
| B7017-C-T-P4S-UL | B7217-C-T-P4S-UL |
| B7018-C-T-P4S-UL | B7218-C-T-P4S-UL |
| B7019-C-T-P4S-UL | B7219-C-T-P4S-UL |
| B7020-C-T-P4S-UL | B7220-C-T-P4S-UL |
| B7021-C-T-P4S-UL | B7221-C-T-P4S-UL |
| B7022-C-T-P4S-UL | B7222-C-T-P4S-UL |
| B7024-C-T-P4S-UL | B7224-C-T-P4S-UL |
| B7026-C-T-P4S-UL | B7226-C-T-P4S-UL |
| B7028-C-T-P4S-UL | B7228-C-T-P4S-UL |
| B7030-C-T-P4S-UL | B7230-C-T-P4S-UL |
| B7032-C-T-P4S-UL | B7232-C-T-P4S-UL |
| B7034-C-T-P4S-UL | B7234-C-T-P4S-UL |
| B7036-C-T-P4S-UL | B7236-C-T-P4S-UL |
| B7038-C-T-P4S-UL | B7238-C-T-P4S-UL |
| B7040-C-T-P4S-UL | B7240-C-T-P4S-UL |
| B7044-C-T-P4S-UL | B7244-C-T-P4S-UL |
| B7048-C-T-P4S-UL | |
